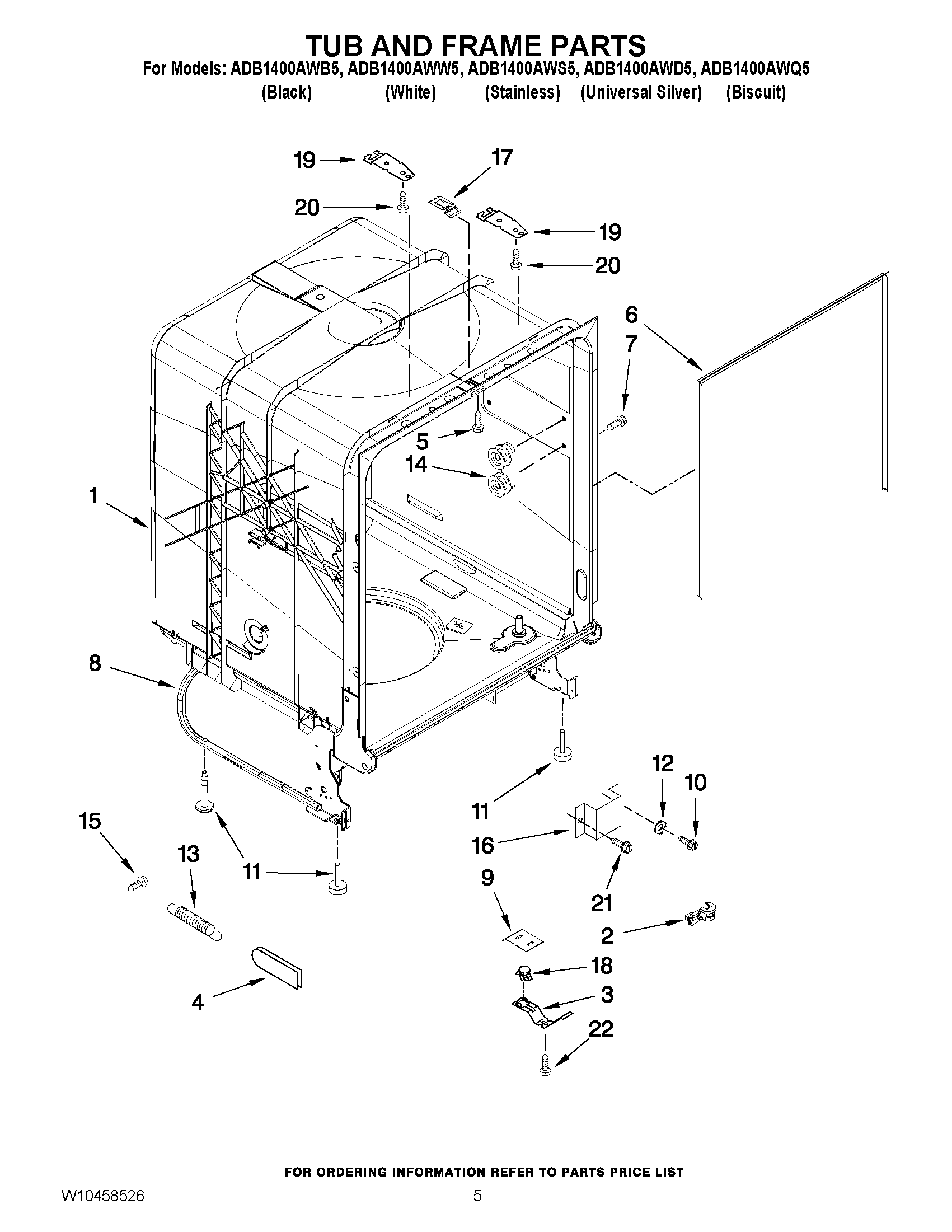

ADB1400AWB5 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8573061
3	MAY 3378595
4	MAY 8268990
5	MAY W10165274
6	MAY W10284090
7	MAY W10341745
8	SUPPORT ASSEMBLY, BOTTOM
9	SHIELD, THERMOSTAT
10	MAY 3400014
11	MAY 8524584
12	WASHER, PRONGED CUP
13	MAY 8524473
14	MAY 8270016
16	MAY 8268991
17	STRIKE, LATCH
18	MAY W10339474
19	MAY 8269145
20	MAY 3367670
21	MAY W10277003
22	SCREW
