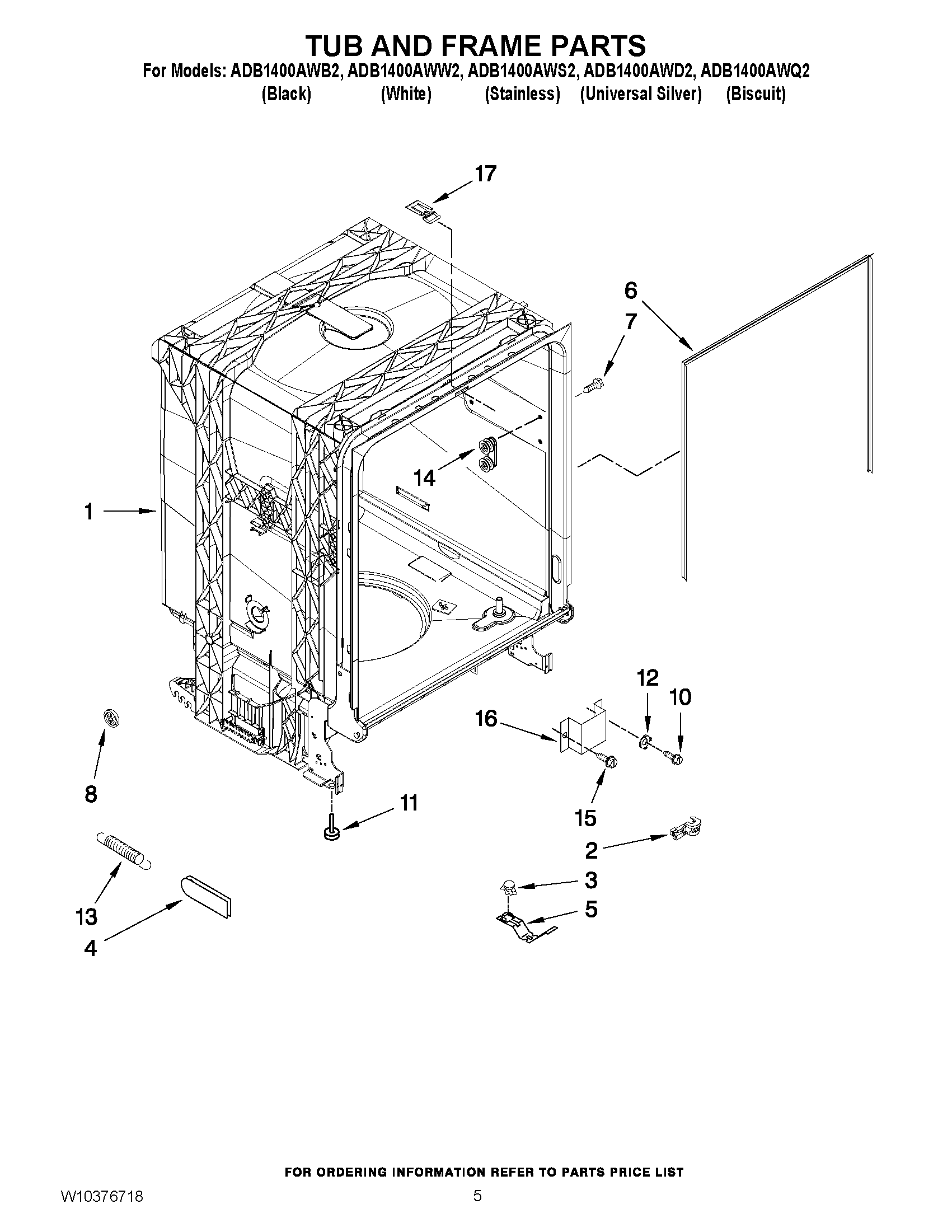

ADB1400AWD2 05 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10254860
2MAY 8573061
3MAY 661566
4MAY 8268990
5MAY 3378595
6MAY W10284090
7SCREW
8MAY 8269831
10MAY 3400014
11MAY 8524584
12WASHER, PRONGED CUP
13MAY 8524473
14MAY 8270016
15MAY 3400892
16MAY 8268991
17STRIKE, LATCH
