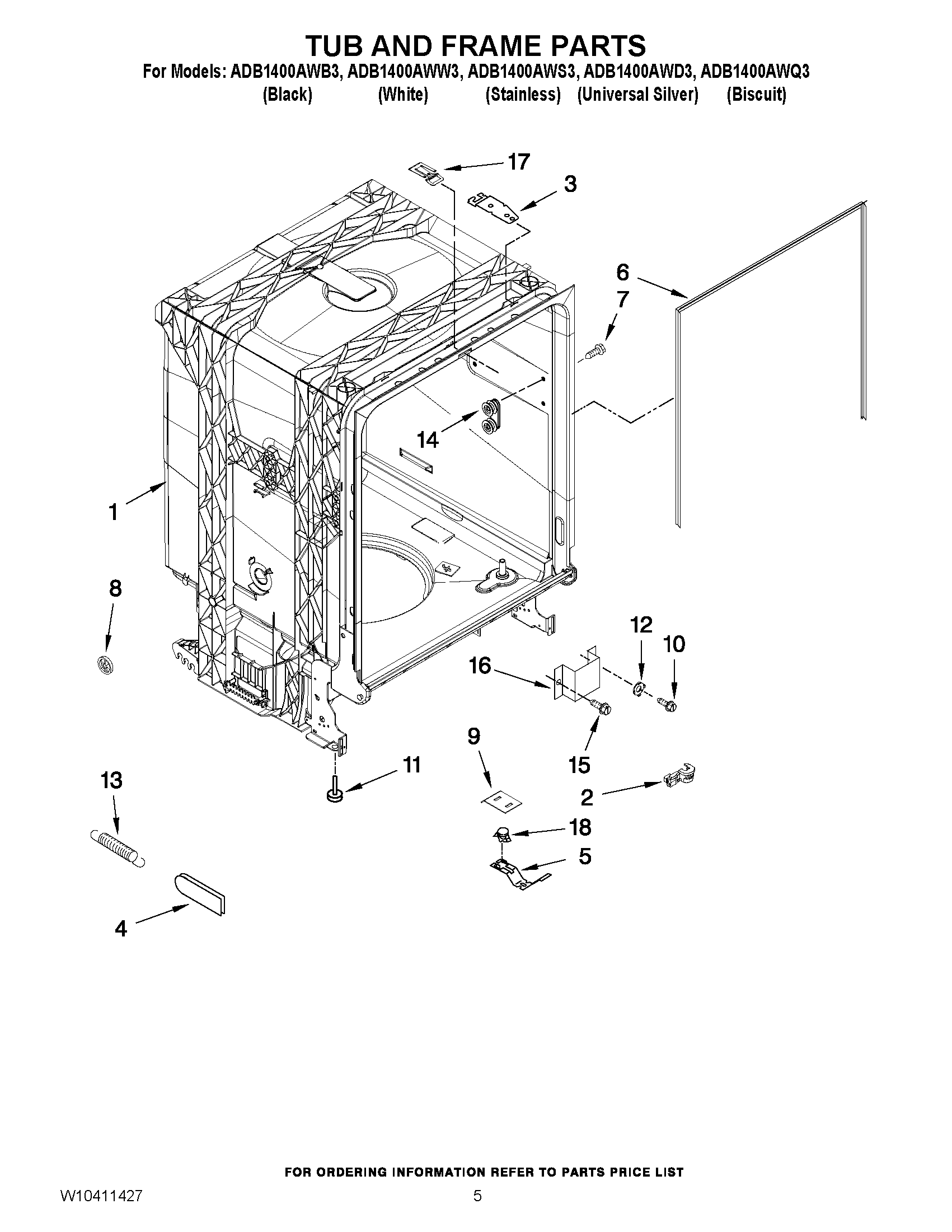

ADB1400AWD3 05 – TUB AND FRAME PARTS

Written by

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8573061
3	MAY 8269145
4	MAY 8268990
5	MAY 3378595
6	MAY W10284090
7	MAY W10341745
8	MAY 8269831
9	SHIELD, THERMOSTAT
10	MAY 3400014
11	MAY 8524584
12	WASHER, PRONGED CUP
13	MAY 8524473
14	MAY 8270016
15	MAY 3400892
16	MAY 8268991
17	STRIKE, LATCH
18	MAY 661566
