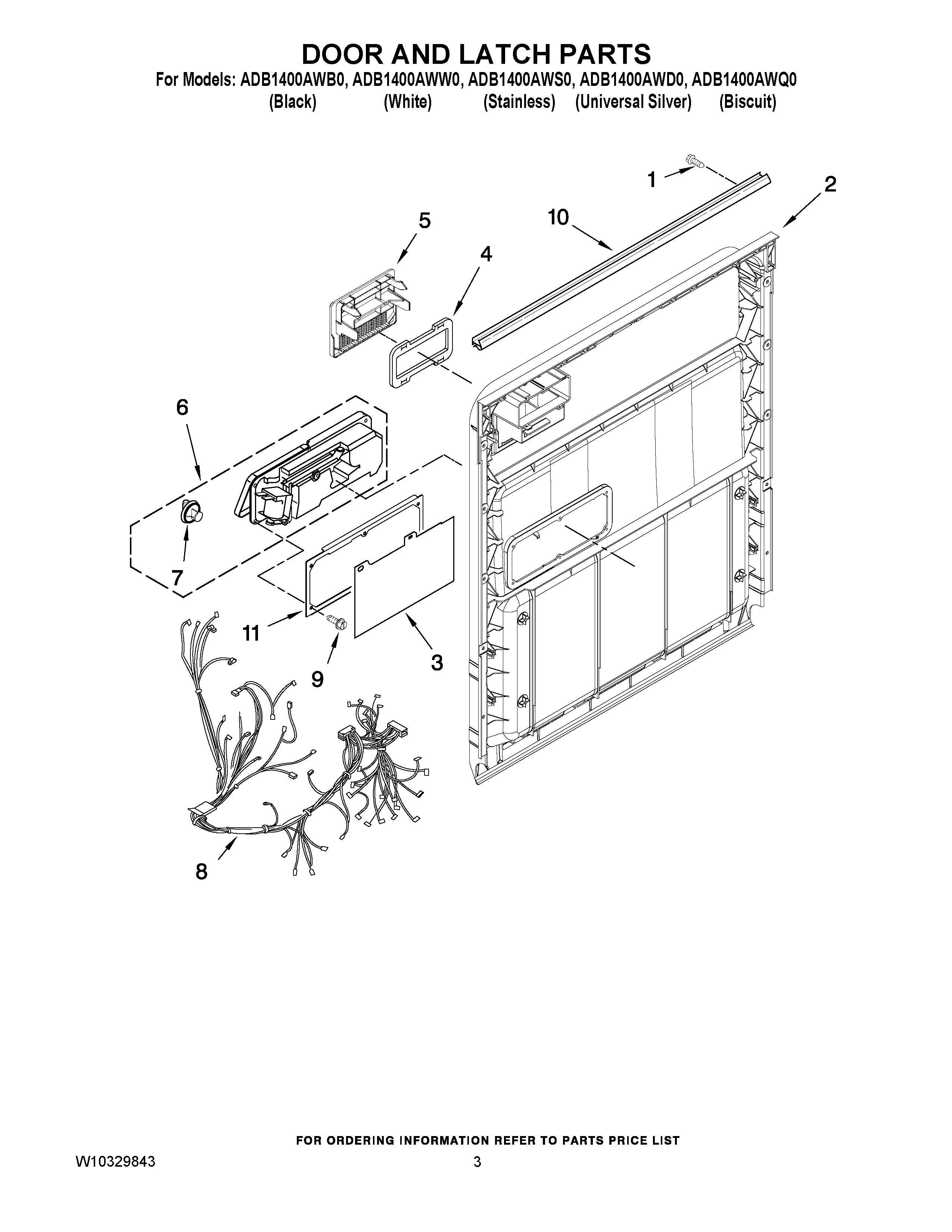

ADB1400AWW0 03 – DOOR AND LATCH PARTS

Written by

Products

Position	Product
1	SCREW
2	INNER DOOR ASSEMBLY (ALSO ORDER ITEM 6)
3	SHIELD, DISPENSER
4	MAY W10254545
5	DEFLECTOR, VENT (ALSO ORDER ITEM 6)
6	MAY W10195411
7	MAY 8533380
8	MAY W10224457
9	MAY W10177098
10	MAY 8269296
11	BRACKET, DISPENSER
