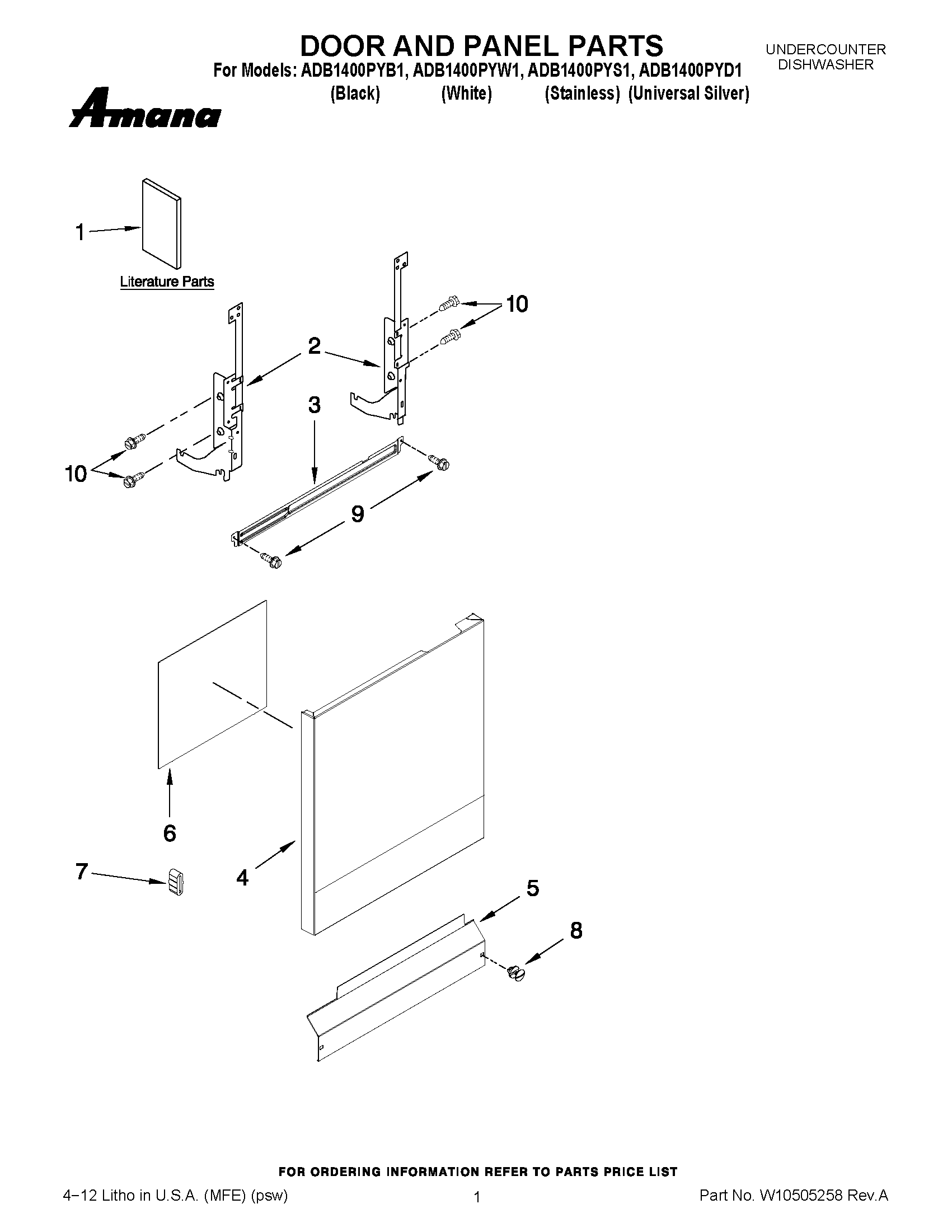

ADB1400PYB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10475842
1MAY W10447872
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1MAY W10321977
2ARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3MAY W10195120
4MAY W10274895
4MAY W10274898
4PANEL FRONT (S. STEEL)
4MAY W10274896
5MAY W10441006
5MAY W10441007
6MAY W10073520
7SLEEVE, FRICTION
8SCREW (WHITE)
8SCREW (BLACK)
9Screw
10MAY 489470
