ADB1400PYB3 01 – DOOR AND PANEL PARTS – Aparts

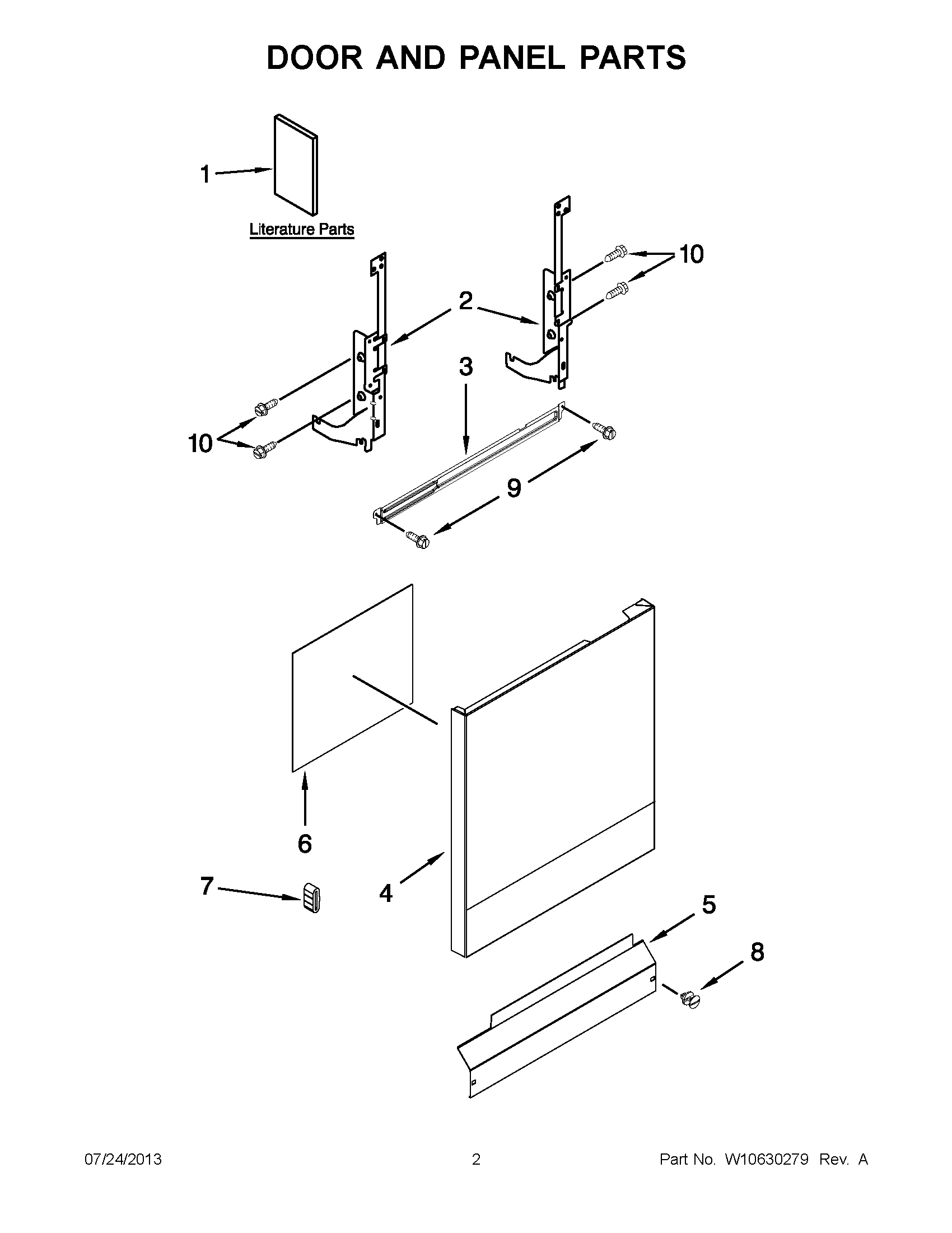

ADB1400PYB3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10596232
1	MAY W10590888
1	MAY W10590887
1	MAY W10490705
1	INSTALLATION INSTRUCTIONS
2	ARM, HINGE (LEFT HAND)
2	ARM, HINGE (RIGHT HAND)
3	MAY W10195120
4	MAY W10274898
4	MAY W10274895
4	PANEL FRONT (S. STEEL)
4	MAY W10274896
5	MAY W10441007
5	MAY W10441006
6	MAY W10073520
7	SLEEVE, FRICTION
8	MAY W10503549
8	MAY W10503548
9	Screw
10	MAY 489470
