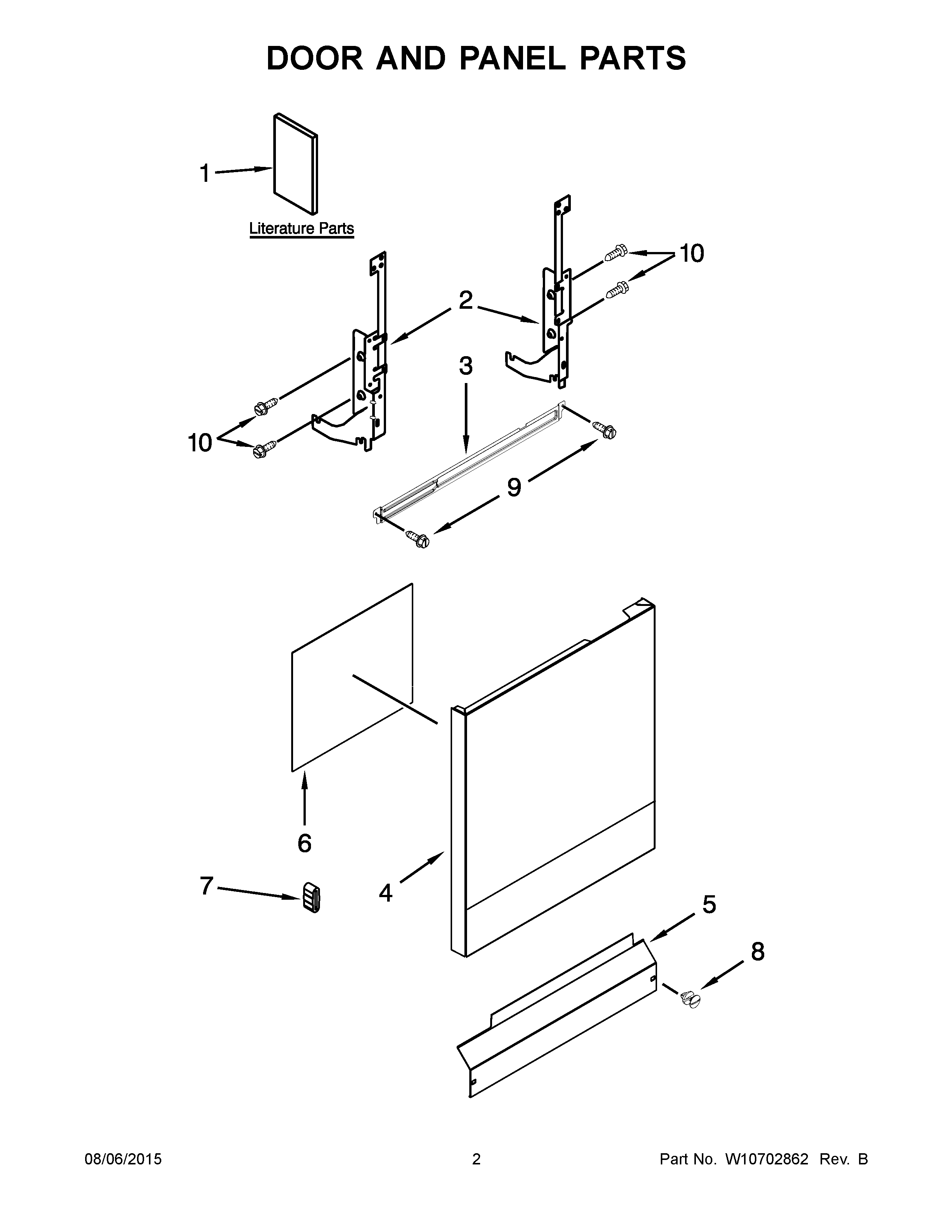

ADB1400PYB5 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W10638463
1BMAY W10667782
1DMAY W10590888
1CMAY W10590887
1INSTALLATION INSTRUCTIONS
2AARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3MAY W10195120
4AMAY W10274896
4BPANEL FRONT (S. STEEL)
4MAY W10274895
5AMAY W10441007
5MAY W10441006
6MAY W10073520
7SLEEVE, FRICTION
8MAY W10503548
8AMAY W10503549
9Screw
10MAY 489470
