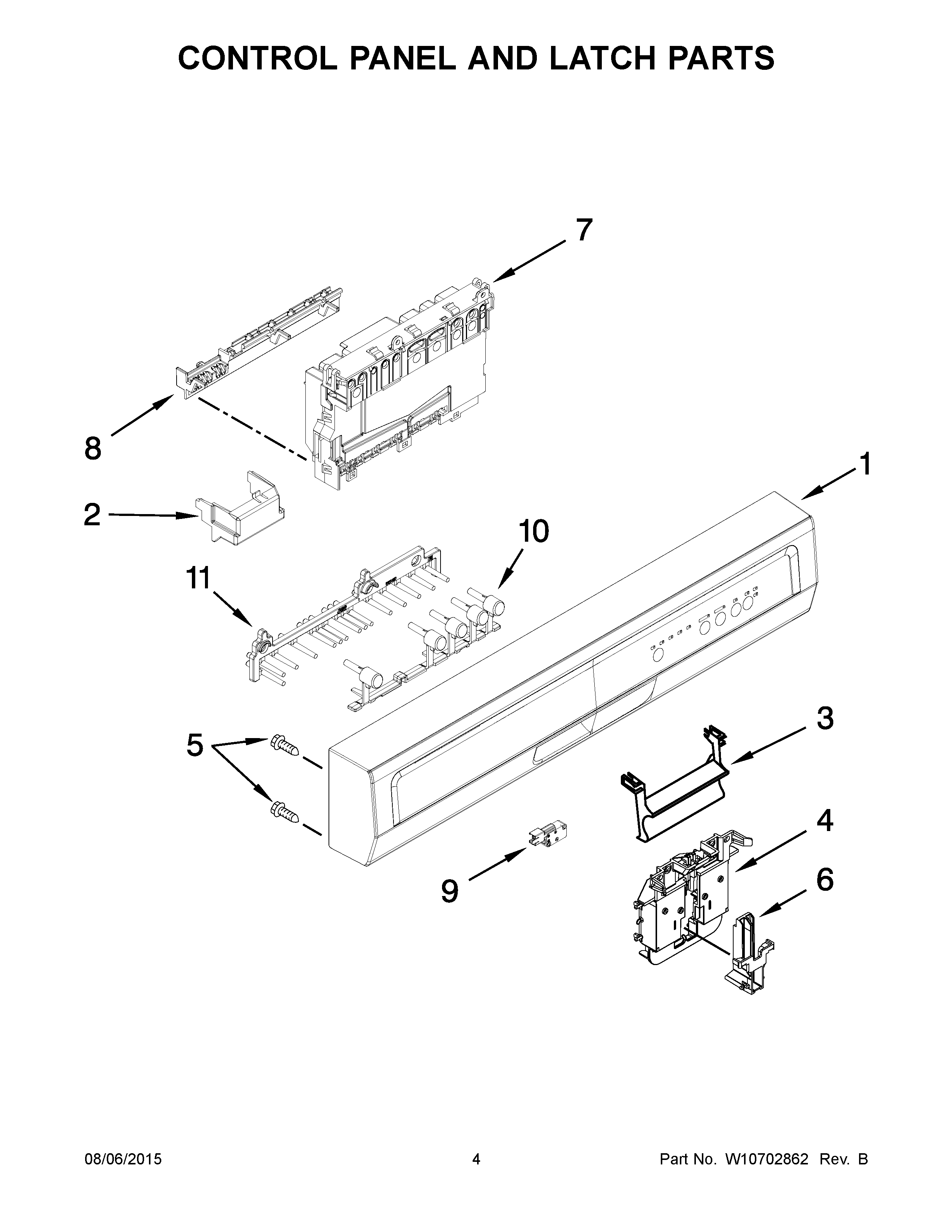

ADB1400PYB5 03 – CONTROL PANEL AND LATCH PARTS

ADB1400PYB5 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

ADB1400PYB5 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1ACONSOLE ASSEMBLY (INCLUDES INSERT AND VENT GASKET) (WHITE)
1CONSOLE ASSEMBLY (INCLUDES INSERT AND VENT GASKET) (BLACK)
2MAY W10401190
3AMAY 8269324
3MAY 8269323
4MAY W10274884
5MAY W10348413
6MAY 8524471
7MAY W10711368
8MAY W10372484
9MAY W10274880
10BUTTON TREE
11MAY W10274837
