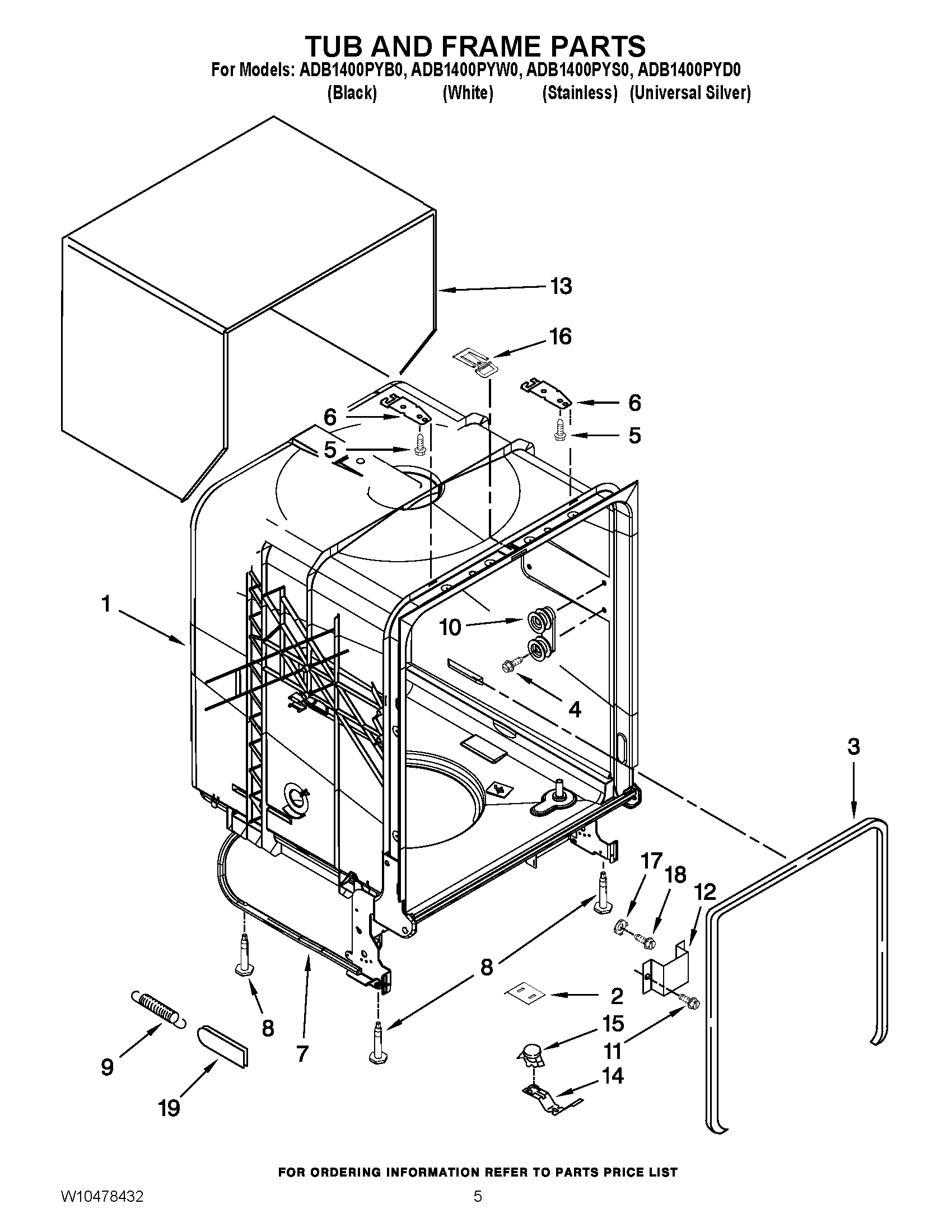

ADB1400PYD0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10349290
2	SHIELD, THERMOSTAT
3	MAY W10284090
4	MAY W10341745
5	MAY 3367670
6	MAY 8269145
7	SUPPORT ASSEMBLY, BOTTOM
8	MAY 8524584
9	SPRING, DOOR
10	MAY 8270016
11	MAY 3400892
12	MAY 8268991
13	MAY 8573240
14	MAY 3378595
15	MAY W10339474
16	STRIKE, LATCH
17	WASHER, PRONGED CUP
18	MAY 3400014
19	MAY 8268990
