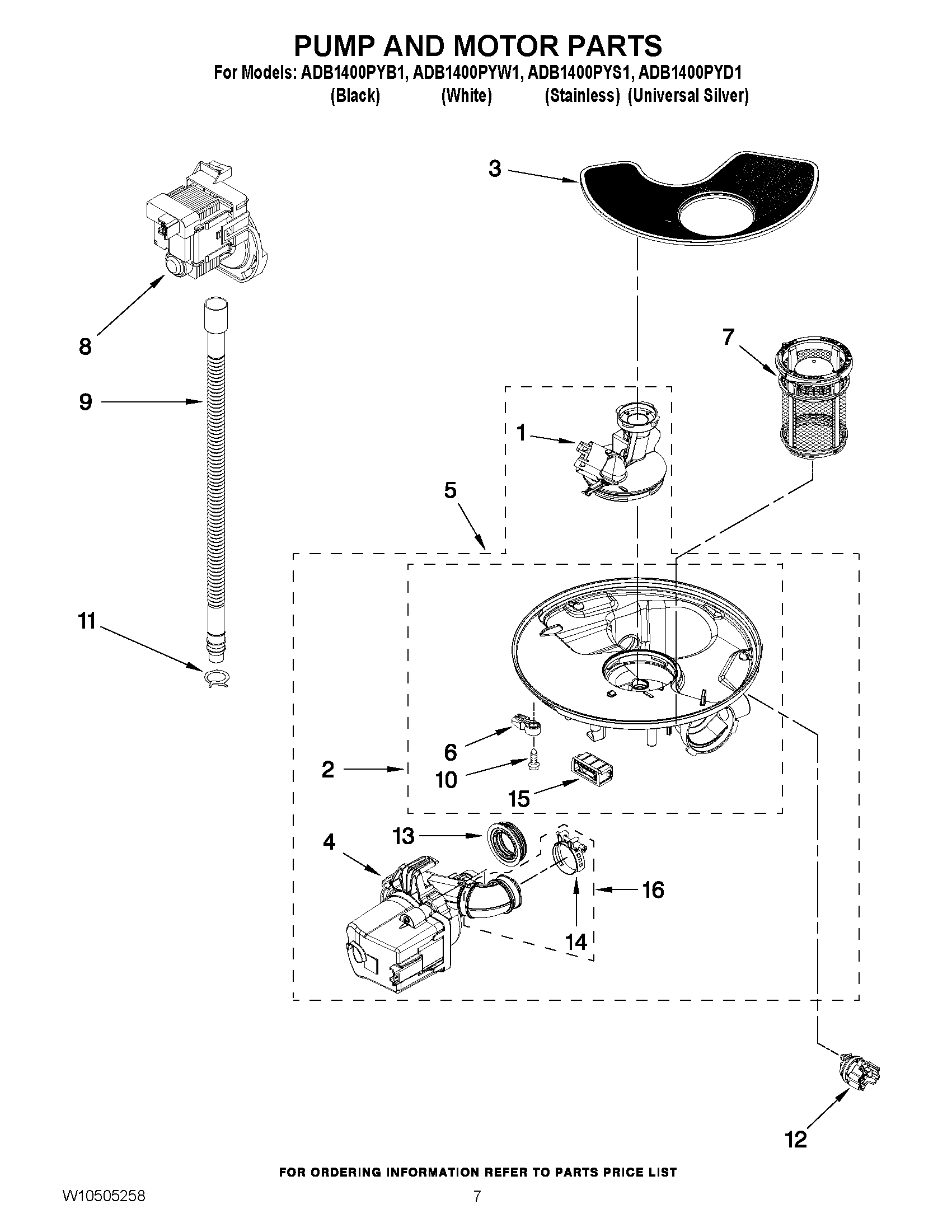

ADB1400PYW1 06 – PUMP AND MOTOR PARTS

Written by

Products

Position	Product
1	COVER, OUTLET
2	SUMP WITH SEAL (ALSO ORDER ITEMS 13 & 18)
3	SCREEN
4	MOTOR (ALSO ORDER ITEMS 13 & 16)
5	MAY W10482480
6	TAB, SUMP
7	MAY W10393352
8	MAY 8558995
9	MAY 8269144
10	MAY W10348407
11	MAY 370445
12	MAY W10134017
13	MAY W10195068
14	CLAMP, HOSE
15	MOTOR, ISOLATOR
16	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
