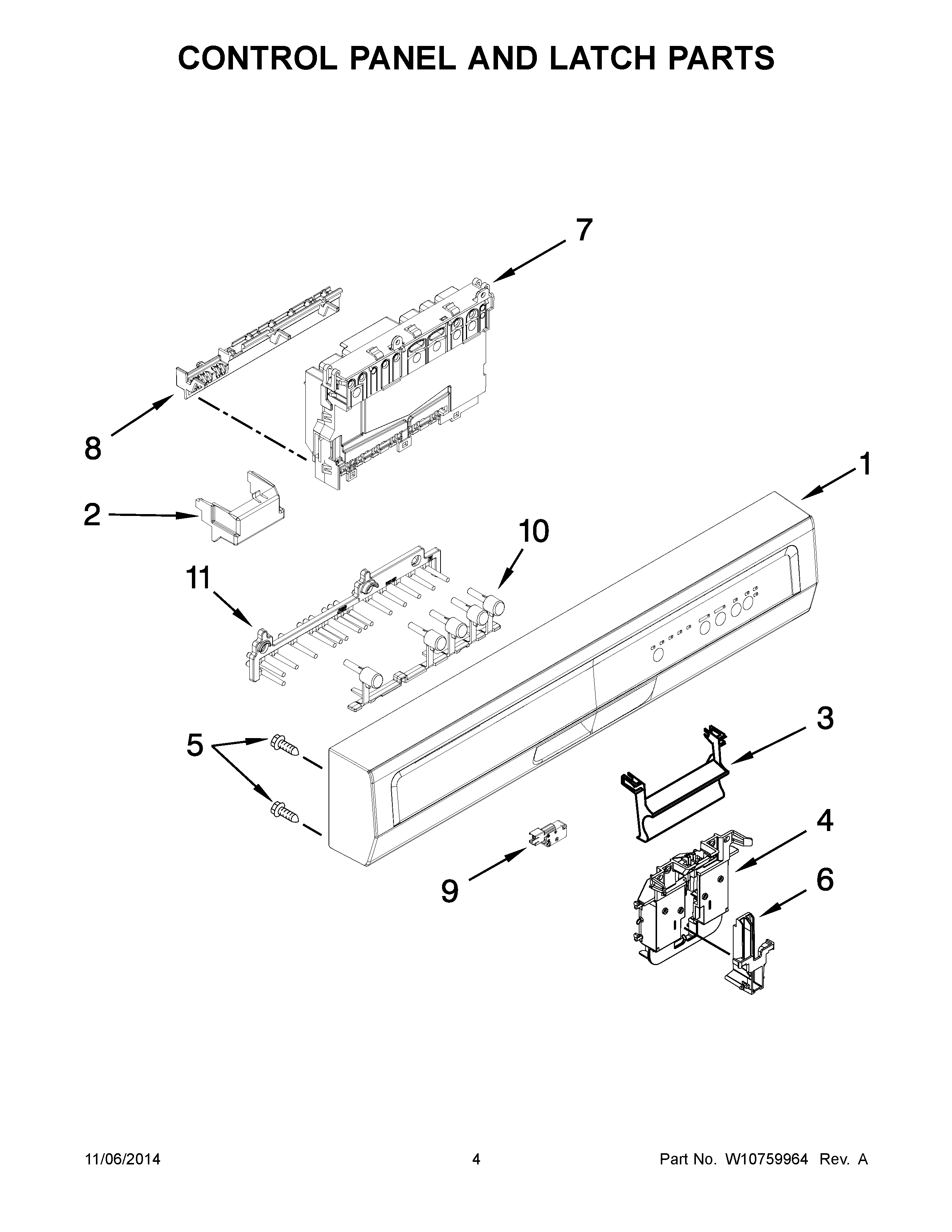

ADB1400PYW6 03 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1A	CONSOLE ASSEMBLY (INCLUDES INSERT AND VENT GASKET) (WHITE)
1	CONSOLE ASSEMBLY (INCLUDES INSERT AND VENT GASKET) (BLACK)
2	MAY W10401190
3A	MAY 8269324
3	MAY 8269323
4	MAY W10274884
5	MAY W10348413
6	MAY 8524471
7	MAY W10588603
8	MAY W10372484
9	MAY W10274880
10	BUTTON TREE
11	MAY W10274837
