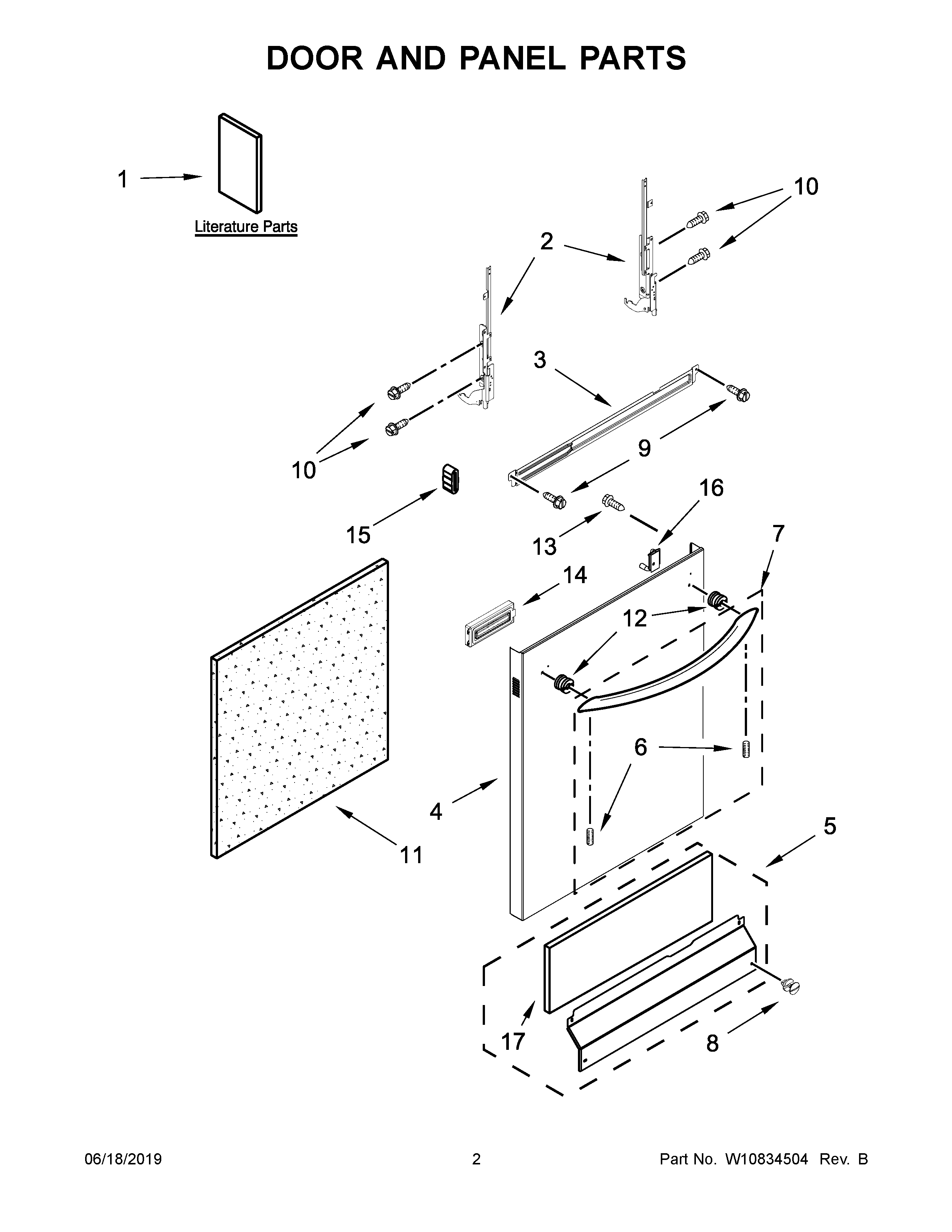

ADB1500ADB3 02 – DOOR AND PANEL PARTS

ADB1500ADB3 02 – DOOR AND PANEL PARTS

Written by

in

ADB1500ADB3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DMAY W10751168
1AMAY W11236366
1INSTALLATION INSTRUCTIONS
1CMAY W10751166
1BUSE & CARE GUIDE
2AARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3STIFFENER, DOOR
4BMAY W10577294
4MAY W10577291
4AMAY W10577292
5AACCESS PANEL (WHITE)
5MAY W10799402
6MAY W10223573
7BHANDLE ASSEMBLY (STAINLESS)
7AHANDLE ASSEMBLY (WHITE)
7MAY W10786155
8AMAY W10503549
8MAY W10503548
9Screw
10MAY 489470
11MAY W10254613
12STUD, MOUNTING
13MAY W10316572
14AGRILL, VENT ASSEMBLY (WHITE)
14GRILL, VENT ASSEMBLY (BLACK)
14BGRILL, VENT ASSEMBLY (SILVER)
15SLEEVE, FRICTION
16MAY W10500331
17MAY W10519755
