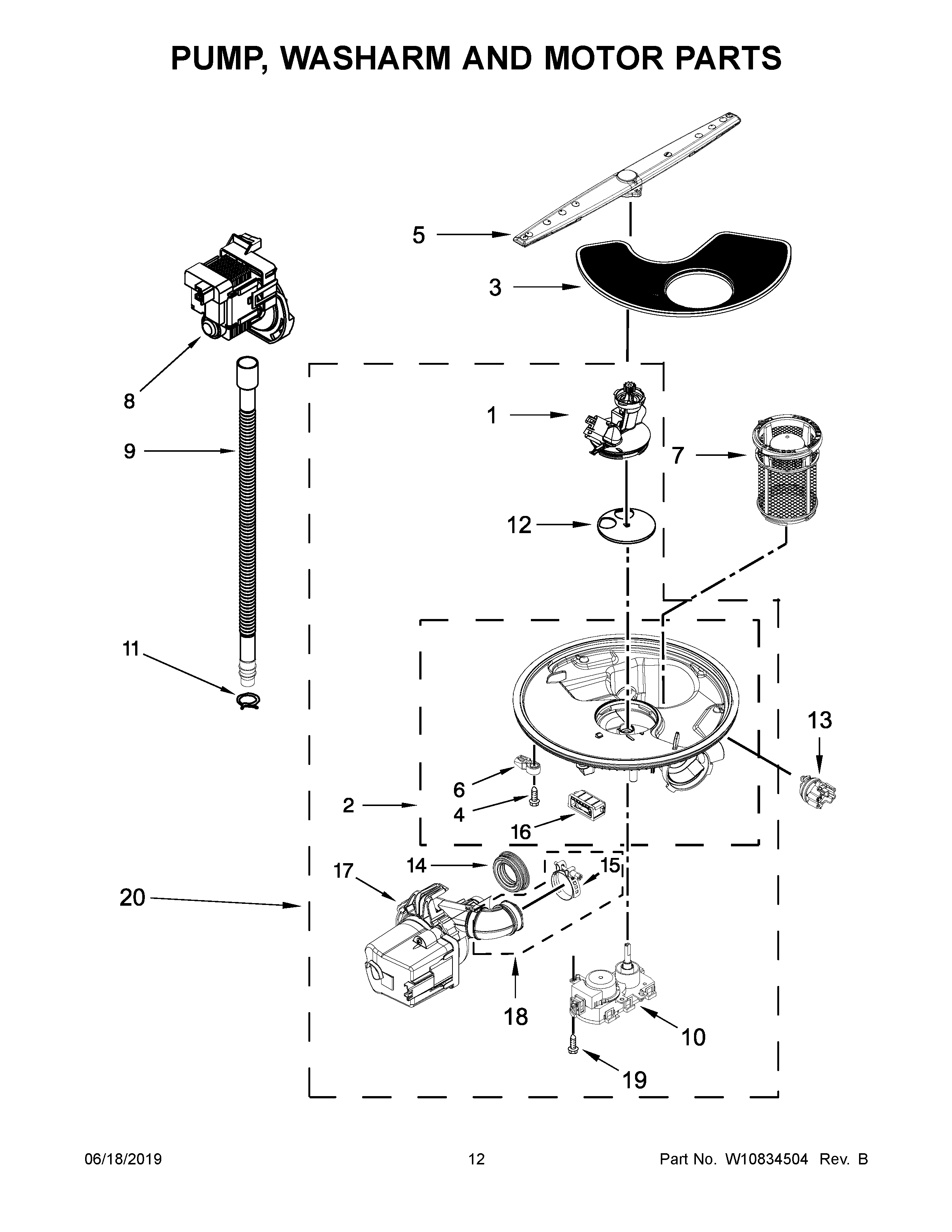

ADB1500ADB3 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	COVER, OUTLET
2	SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
3	SCREEN
4	MAY W10348407
5	SPRAYARM
6	TAB, SUMP
7	FILTER CUP ASSEMBLY
8	MAY W10724439
9	MAY 8269144
10	MOTOR, DIVERTER
11	MAY 370445
12	DISC, DIVERTER
13	INDICATOR, OPTICAL WASH
14	GROMMET
15	CLAMP, HOSE
16	MOTOR, ISOLATOR
17	MOTOR (ALSO ORDER ITEMS 5 & 20)
18	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
19	MAY 9741232
20	MAY W10733484
