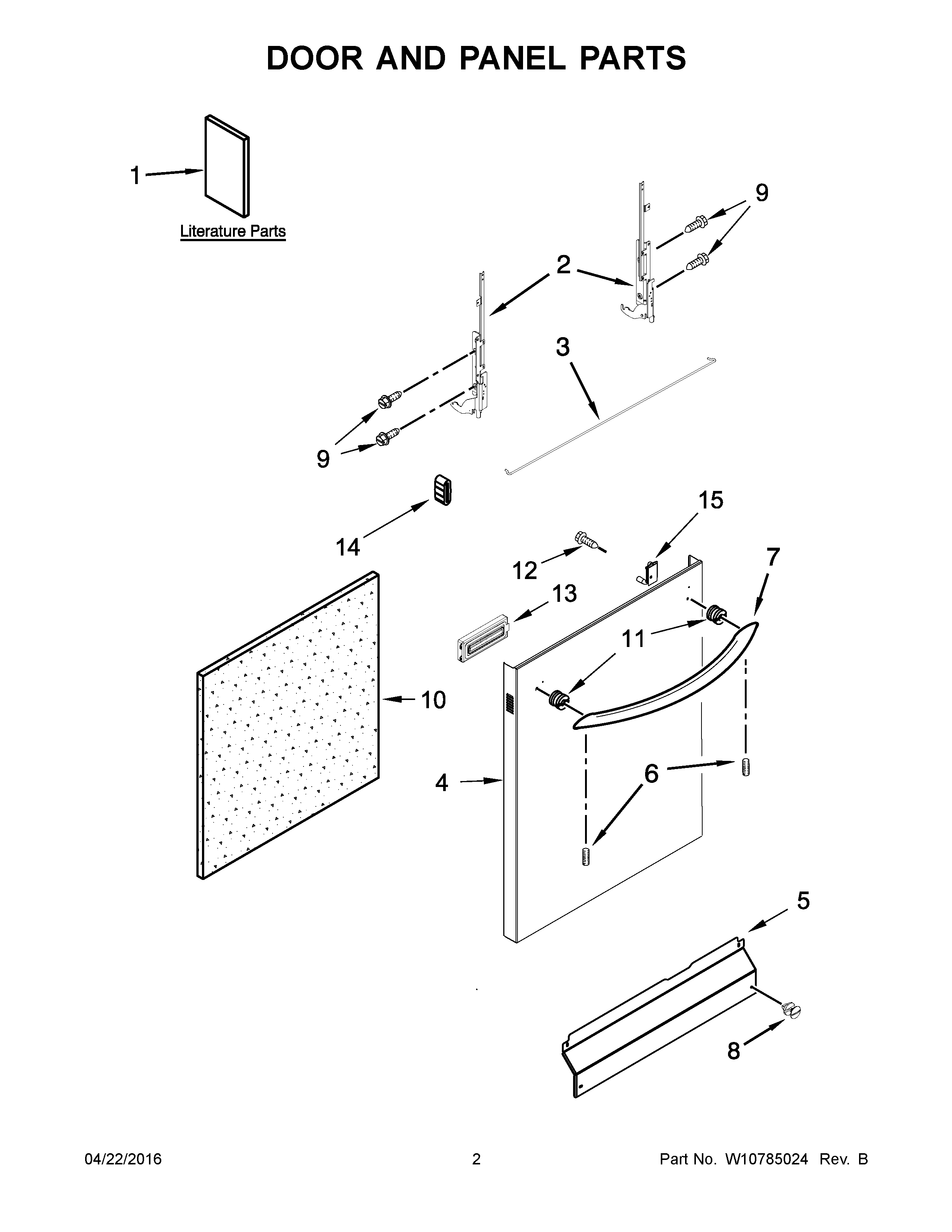

ADB1500ADS2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W10708666
1BMAY W10708664
1CMAY W10610060
1DMAY W10610059
1INSTALLATION INSTRUCTIONS
2ARM, HINGE (LEFT HAND)
2AARM, HINGE (RIGHT HAND)
3STIFFENER, DOOR
4BMAY W10577294
4AMAY W10577292
4MAY W10577291
5AMAY W10799403
5MAY W10799402
6MAY W10223573
7AHANDLE ASSEMBLY (WHITE)
7HANDLE ASSEMBLY (BLACK)
7BHANDLE ASSEMBLY (STAINLESS)
8AMAY W10503549
8MAY W10503548
9MAY 489470
10MAY W10254613
11MAY W10195726
12MAY W10316572
13GRILL, VENT ASSEMBLY (BLACK)
13AGRILL, VENT ASSEMBLY (WHITE)
13BGRILL, VENT ASSEMBLY (SILVER)
14SLEEVE, FRICTION
15MAY W10500331
