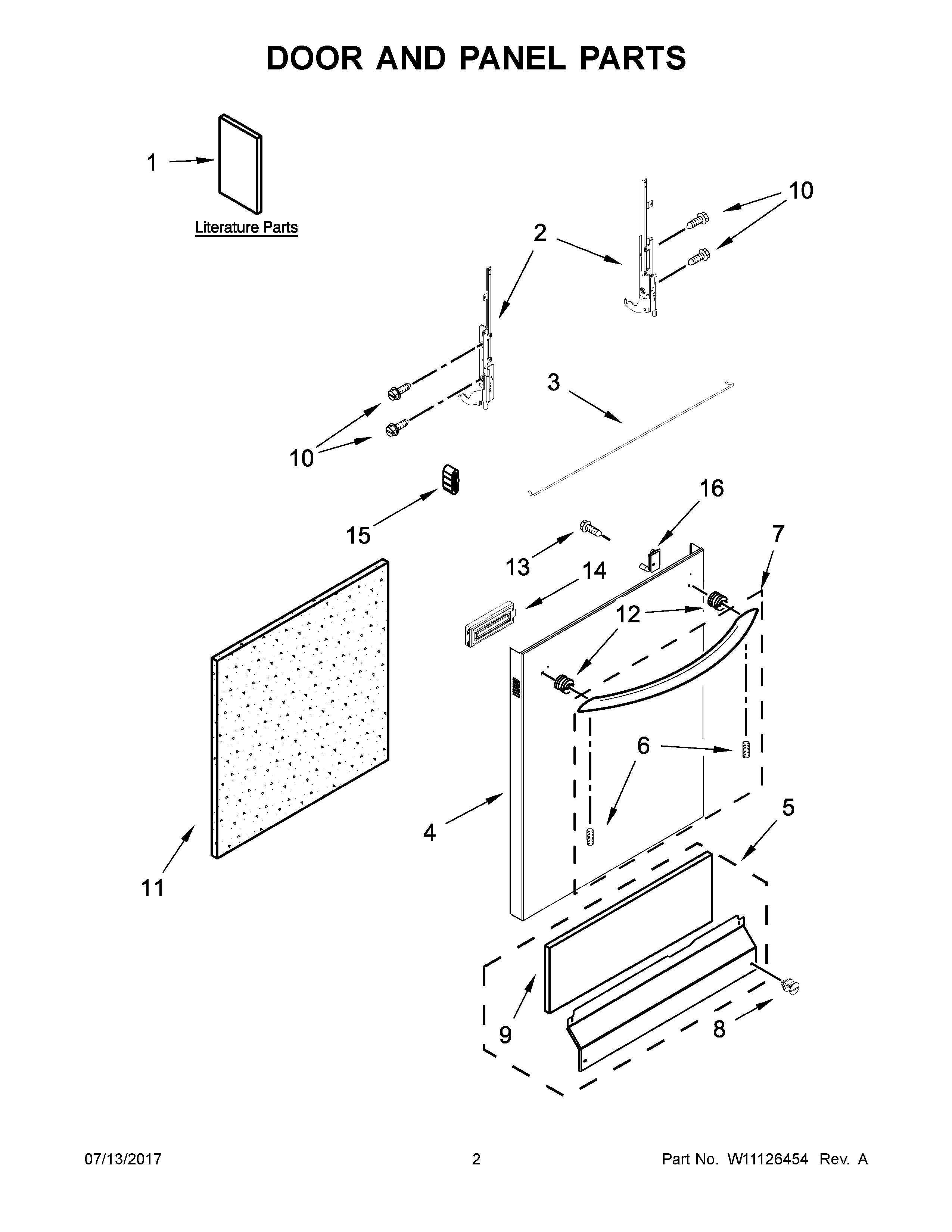

ADB1500ADW4 02 – DOOR AND PANEL PARTS

ADB1500ADW4 02 – DOOR AND PANEL PARTS

Written by

in

ADB1500ADW4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AMAY W10921050
1CTECH SHEET
1BUSE & CARE GUIDE
2ARM, HINGE (LEFT HAND)
2AARM, HINGE (RIGHT HAND)
3STIFFENER, DOOR
4MAY W10577291
4AMAY W10577292
4BMAY W10577294
5AMAY W10799403
5MAY W10799402
6MAY W10223573
7BHANDLE ASSEMBLY (STAINLESS)
7AHANDLE ASSEMBLY (WHITE)
7HANDLE ASSEMBLY (BLACK)
8AMAY W10503549
8MAY W10503548
9MAY W10519755
10MAY 489470
11MAY W10254613
12MAY W10195726
13MAY W10316572
14GRILL, VENT ASSEMBLY (BLACK)
14AGRILL, VENT ASSEMBLY (WHITE)
14BGRILL, VENT ASSEMBLY (SILVER)
15SLEEVE, FRICTION
16MAY W10500331
