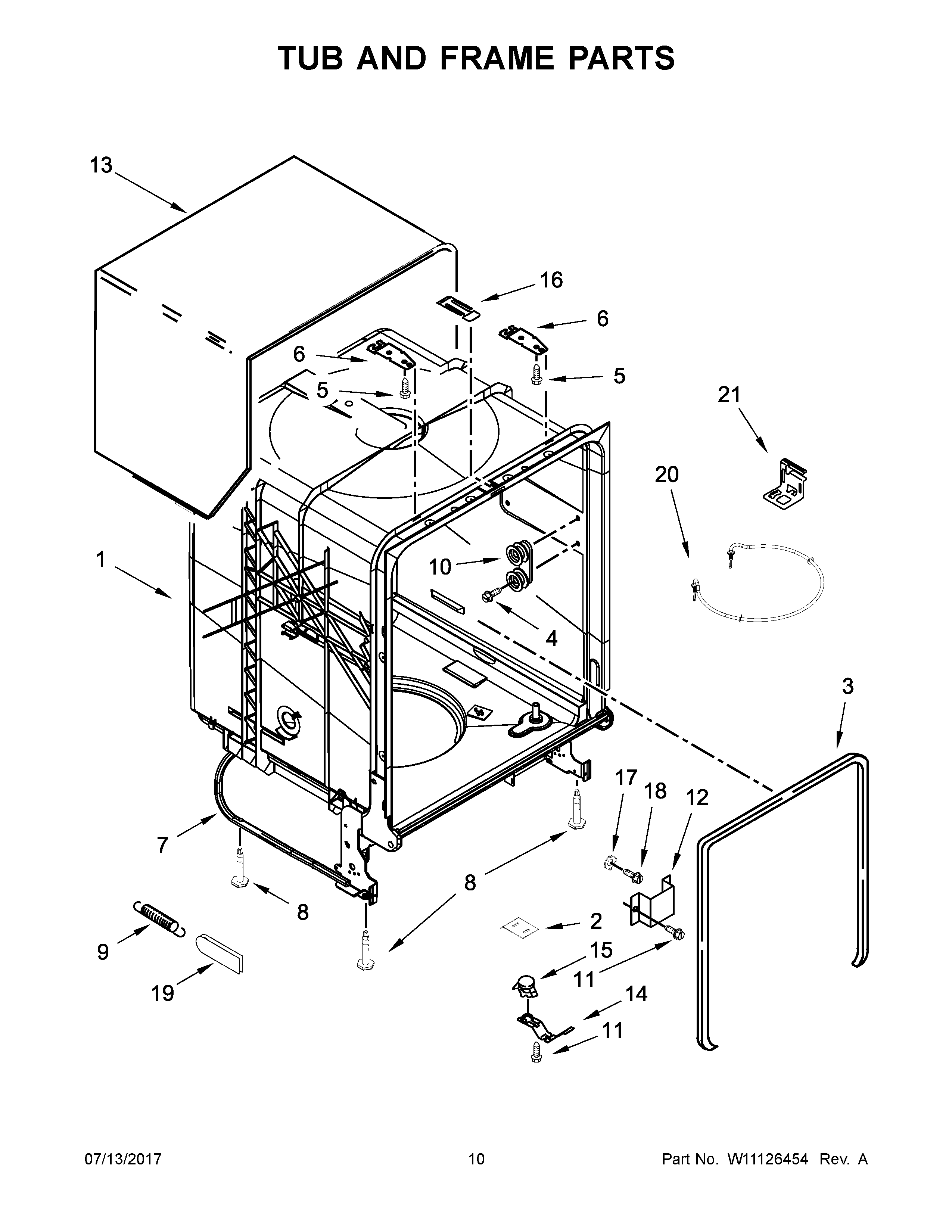

ADB1500ADW4 06 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY W10321574
3	MAY W10524469
4	MAY W10341745
5	MAY 3367670
6	MAY 8269145
7	SUPPORT ASSEMBLY, BOTTOM
8	LEVELER, LEG
9	MAY W10337934
10	MAY 8575897
11	MAY 3400892
12	MAY 8268991
13	MAY W10866978
14	MAY W10539489
15	MAY 3371618
16	STRIKE, LATCH
17	WASHER, PRONGED CUP
18	MAY 3400014
19	MAY 8268990
20	MAY W10441445
21	MAY W10732961
