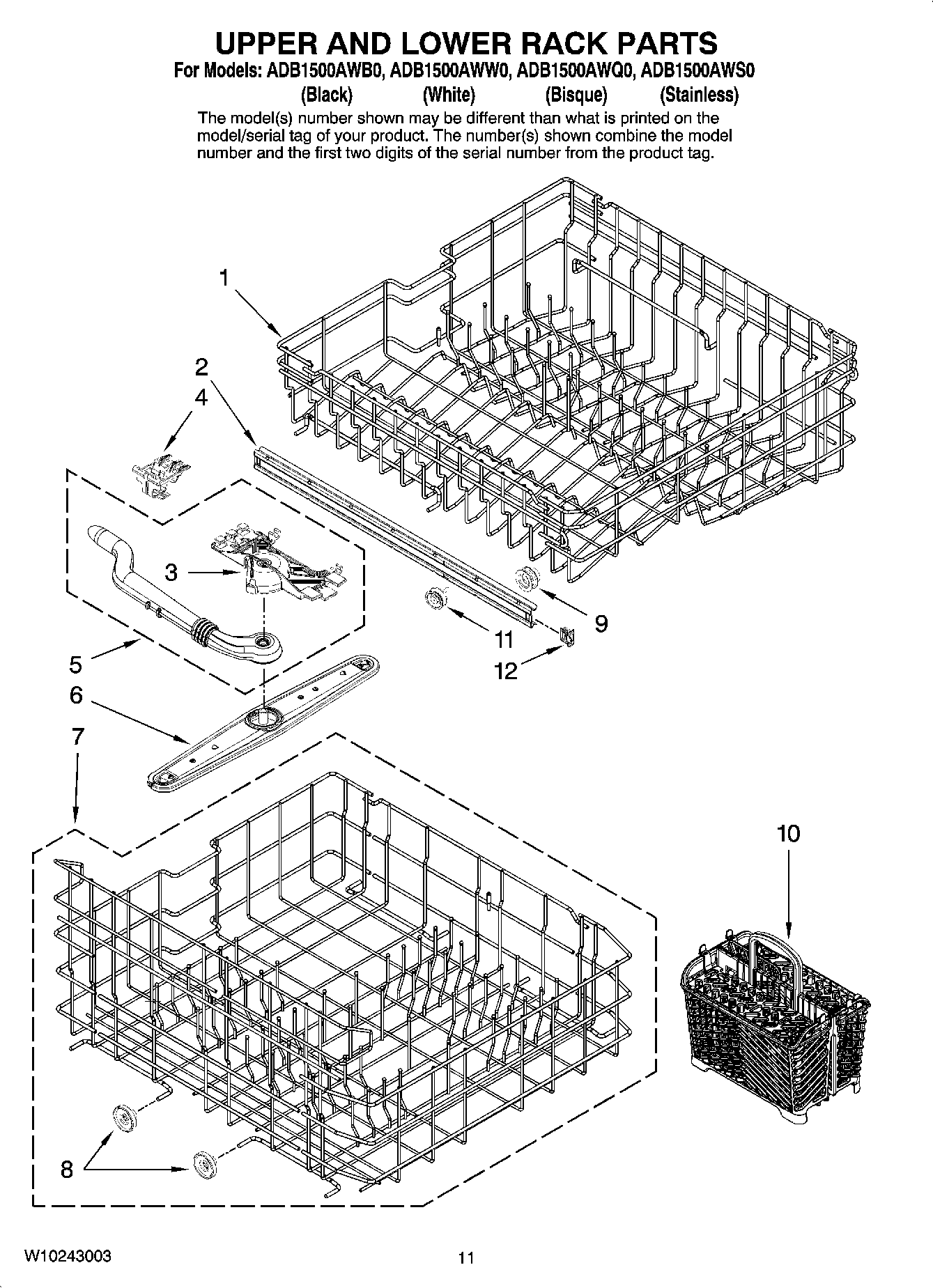

ADB1500AWB0 09 – UPPER AND LOWER RACK PARTS

ADB1500AWB0 09 – UPPER AND LOWER RACK PARTS

Written by

in

ADB1500AWB0 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10203876
2TRACK, RACK
3CLIP, UPR WASH MANIFOLD (FRT)
499002945 Whirlpool Dishwasher Upper Wash Manifold Clip
5WASH MANIFOLD ASSY (UPR)
6WP99003070 Whirlpool Dishwasher Wash Arm
7MAY W10203921
8WP99002780 Whirlpool Lower Wheel Assembly
9WP99002781 Whirlpool Dishwasher Wheel
10MAY 99003429
11WP99002947 Whirlpool Tub Wheel
12WPW10261227 Whirlpool Dishwasher Stop Assembly
