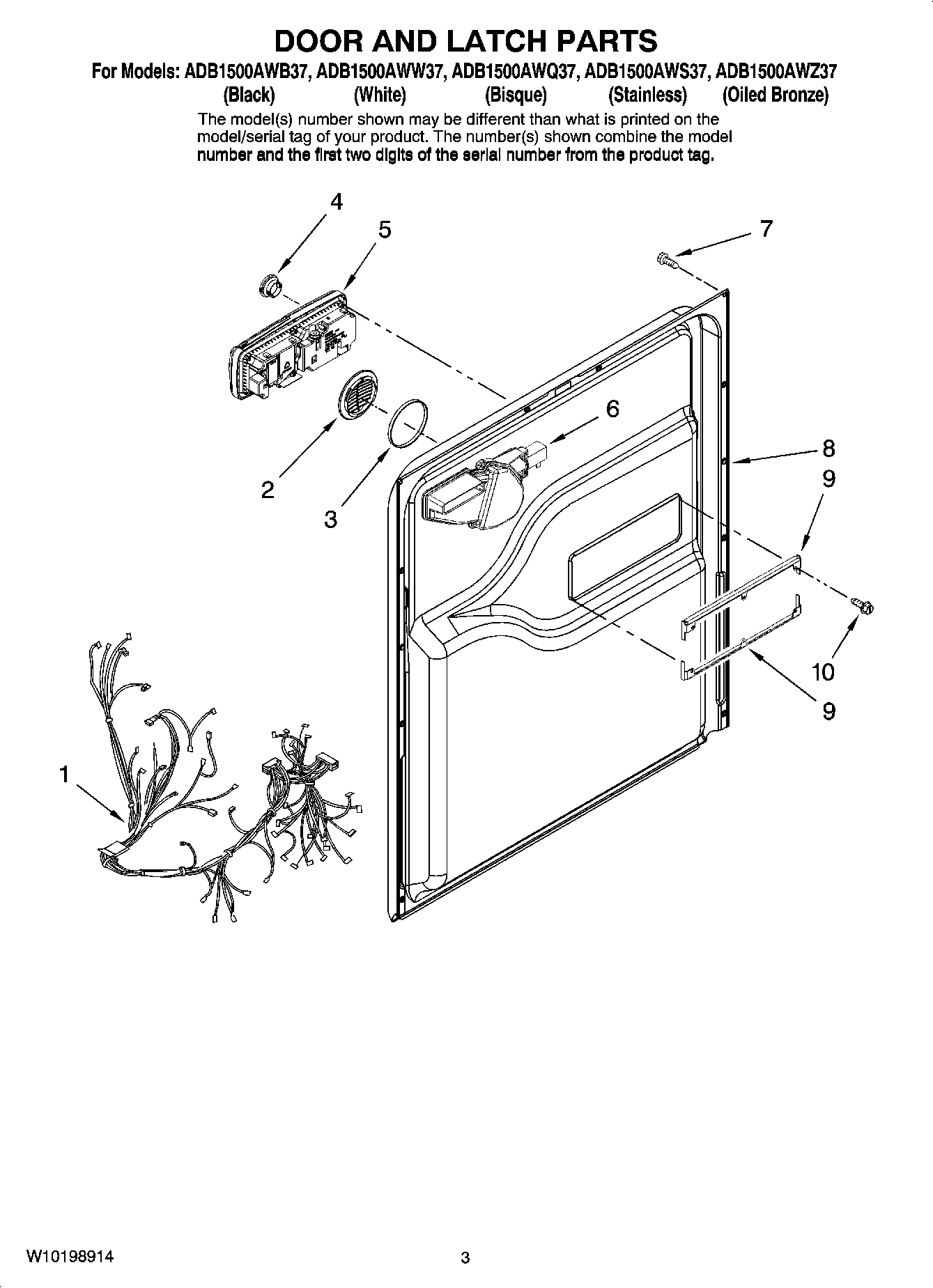

ADB1500AWB37 03 – DOOR AND LATCH PARTS

Written by

Products

Position	Product
1	HARNESS, WIRE
2	99002590 Whirlpool Dishwasher Door Vent Bezel
3	MAY 99002186
4	KNOB, RINSE AID (W/O-RING)
5	DETERGENT/RINSE AID DISPENSER
6	VENT HOUSING ASSEMBLY
7	WPY912620 Whirlpool Dishwasher Screw
8	MAY 99003424
9	6-918900 Whirlpool Dishwasher Bracket
10	SCREW, No.8X1/2 HEX WASHER HEAD
