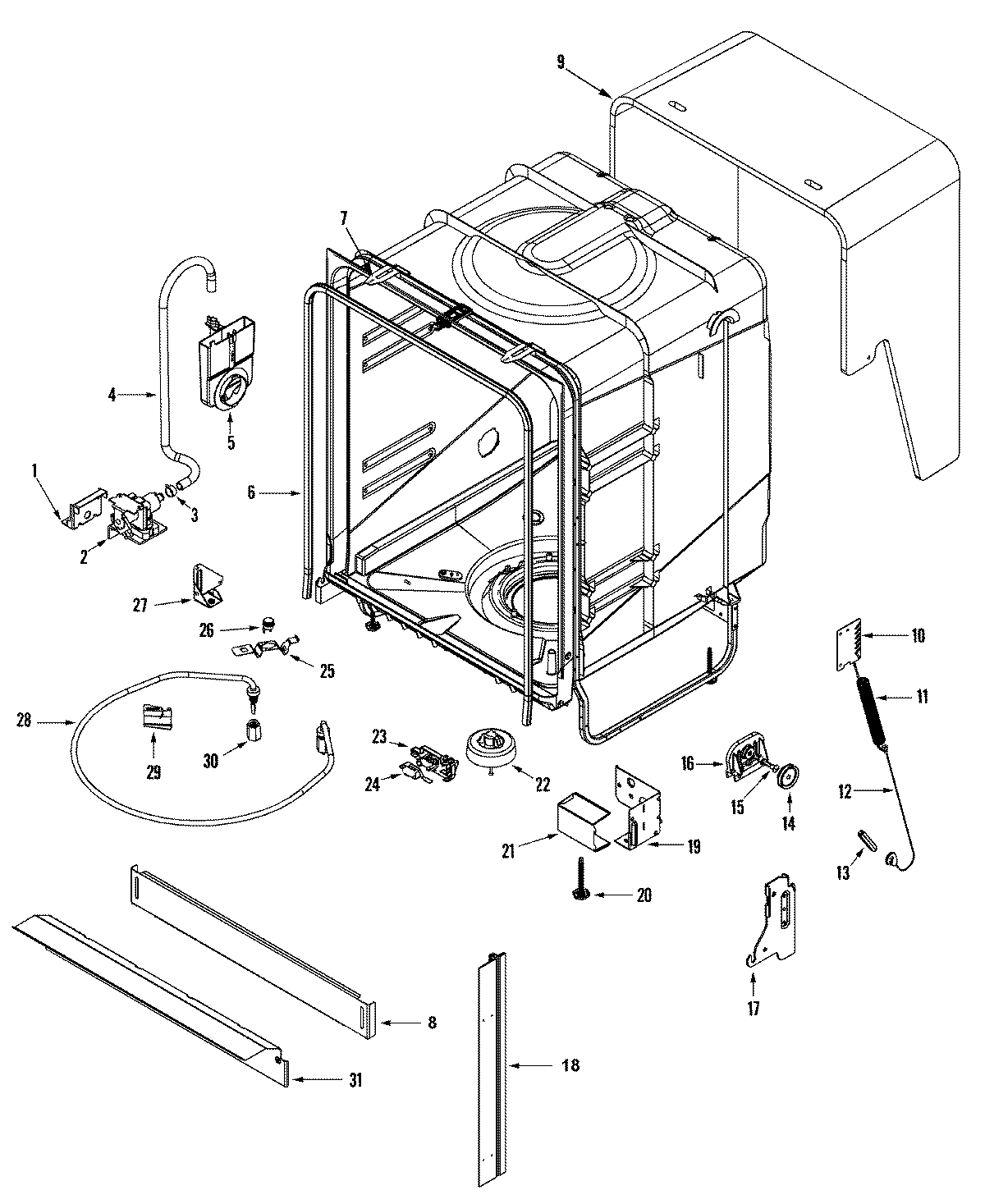

ADB1500AWQ 06 – TUB

Products

Position	Product
1	MAY 99002629
2	W11082871 Whirlpool Dishwasher Inlet Valve
2	MAY 99002553
3	WP596669 Whirlpool Hose Clamp
4	WP99002852 Whirlpool Dishwasher Injector Hose
5	Grill,Air/Water Inlet
5	MAY 99002955
5	MAY 99002954
5	MAY 99002646
5	MAY 99002645
6	MAY 99002588
7	MAY 99002648
8	MAY 99002767
8	MAY 99002114
9	MAY 99002639
9	FASTENER, INSULATION
10	6-918346 Whirlpool Dishwasher Bracket
11	WP99002598 Whirlpool Door Spring
12	WP99003446 Whirlpool Door Cable
14	WP99002608 Whirlpool Dishwasher Cable Roller
15	MAY 99002609
15	MAY 99003687
16	MAY 99003688
16	MAY 99002607
16	MAY 99003686
17	MAY 99002928
17	MAY 99002927
18	MAY 99002692
18	MAY 99002649
19	BRACKET, JUNCTION BOX SUPPORT
20	WPW10143258 Whirlpool Dishwasher Leg Leveler
21	MAY 99002638
21	MAY 912365
22	MAY 99002630
23	MAY 99002943
23	WP3390631 Whirlpool Screw
24	MAY 99002631
25	MAY 99002634
26	MAY 99002633
27	SCREW 10-32X.400 (T-20 HEAD)
27	BRACKET, SUPPORT (LT)
28	MAY 99002973
28	W10283681 Whirlpool Dishwasher Heater
29	WP6-917262 Whirlpool Dishwasher Heater Bracket
30	WP6-920168 Whirlpool Dishwasher Heater Nut
31	MAY 99002861
