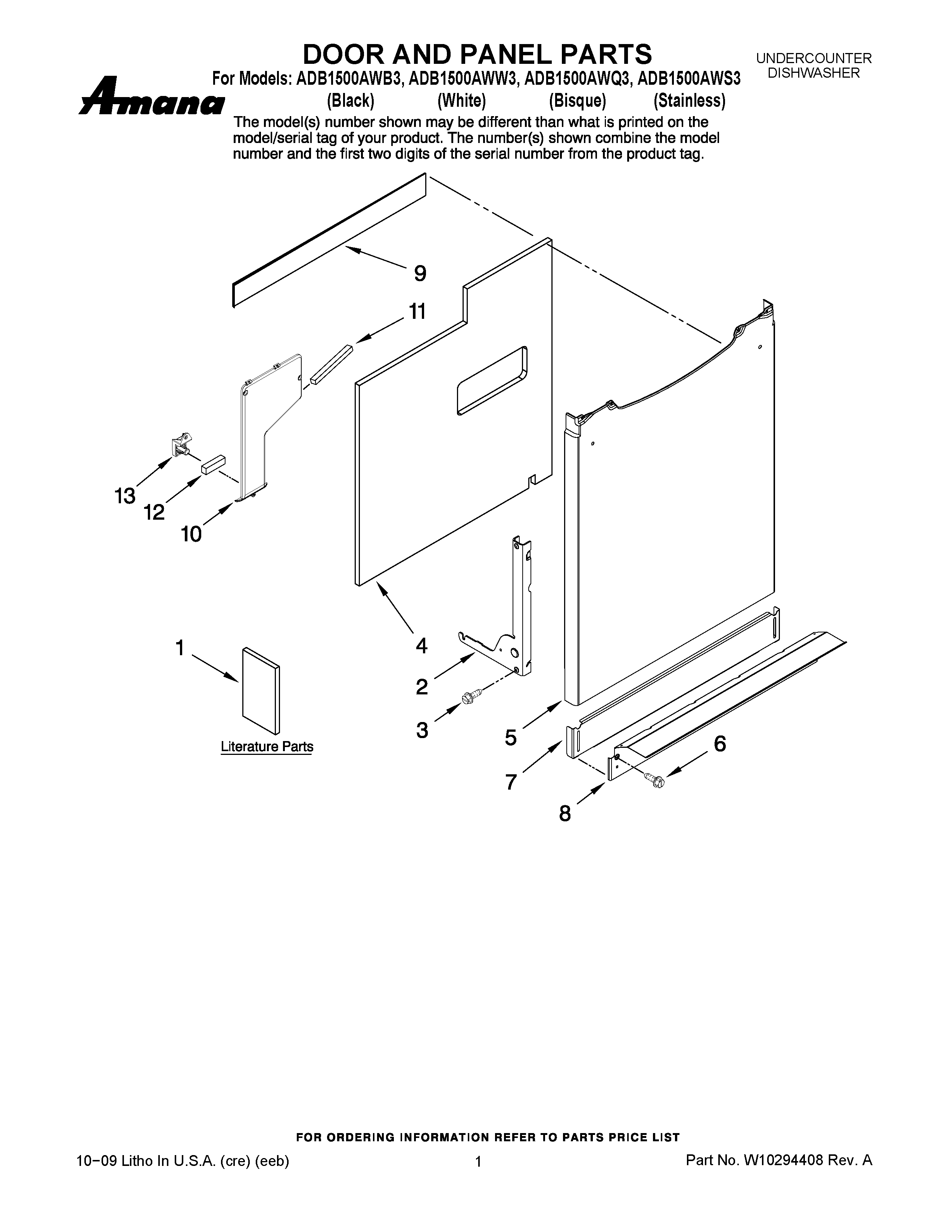

ADB1500AWQ3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10260099
1	USE & CARE GUIDE
1	MAY W10212195
2	MAY W10202226
2	MAY W10202227
3	MAY 99001075
4	INSULATION, DOOR
5	MAY 99002771
5	MAY 99002769
5	MAY 99002770
5	PANEL, DECO (W/DAMPER-BLK)
6	SCREW, ACCESS PANEL
6	WP6-912366 Whirlpool Dishwasher Screw
6	MAY 99002114
7	PANEL, TOE (W/DAMPER-BLK)
7	MAY 99002766
7	MAY 99002767
8	MAY 99002593
8	MAY 99002592
8	MAY 99002591
9	MAY W10117748
10	MAY W10185633
11	Foam Strip(Long)
12	MAY 99003482
13	MAY 99003541
