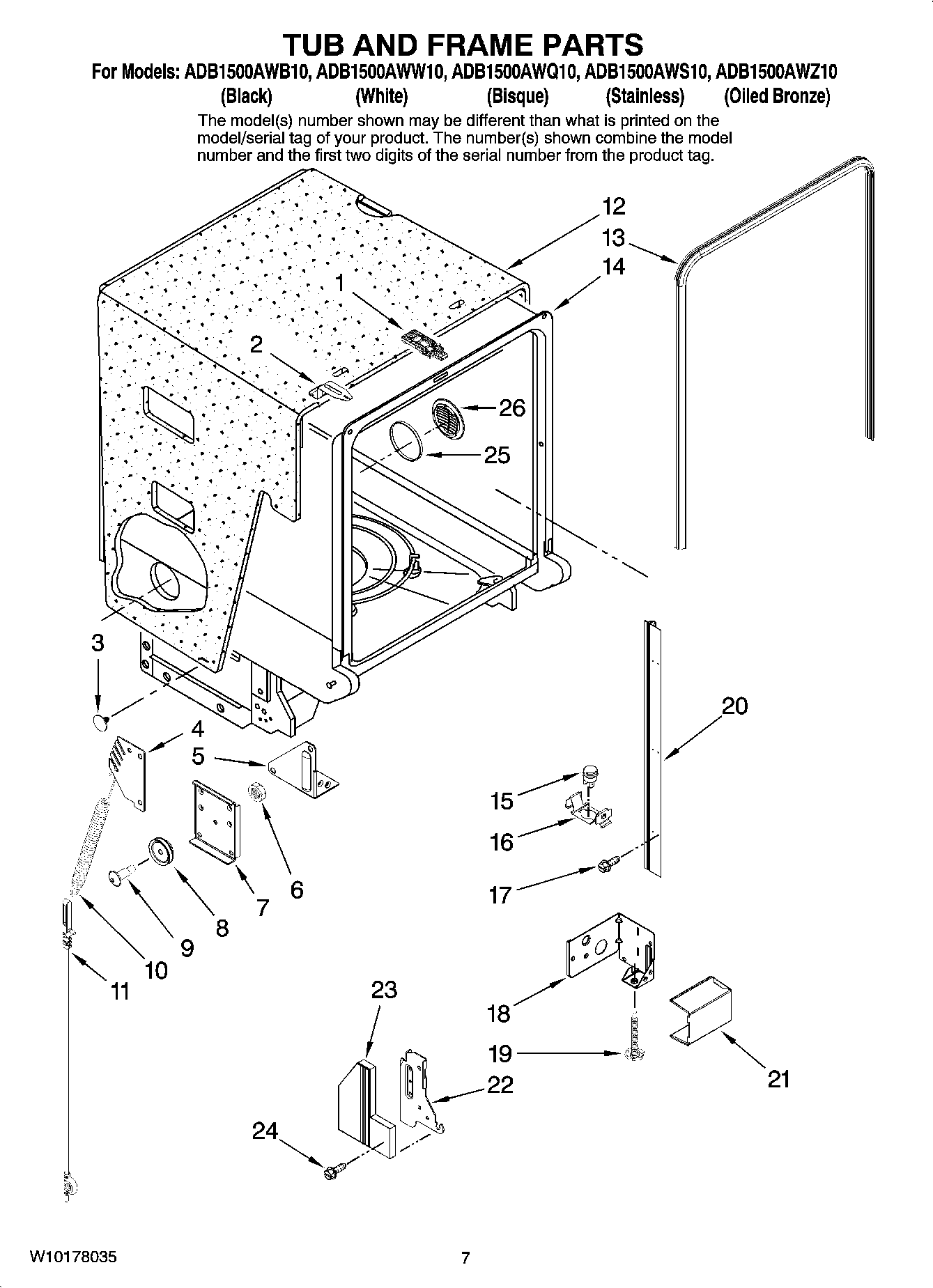

ADB1500AWS10 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY 99003357
2	MAY 99002648
3	FASTENER, INSULATION
4	6-918346 Whirlpool Dishwasher Bracket
5	BRACKET, SUPPORT (LT)
6	MAY 99003688
7	MAY 99002607
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99002609
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	MAY 99002639
13	MAY 99002588
14	MAY W10142297
15	MAY 99002633
16	MAY 99002634
17	MAY 99002692
18	BRACKET, JUNCTION BOX SUPPORT
19	WPW10143258 Whirlpool Dishwasher Leg Leveler
20	MAY 99002649
21	MAY 99002638
22	MAY 99002928
22	MAY 99002927
23	BACKER, HINGE SEAL (LT)
23	BACKER, HINGE SEAL (RT)
24	SCREW 10-32X.400 (T-20 HEAD)
25	MAY W10200542
26	Grill,Air/Water Inlet
