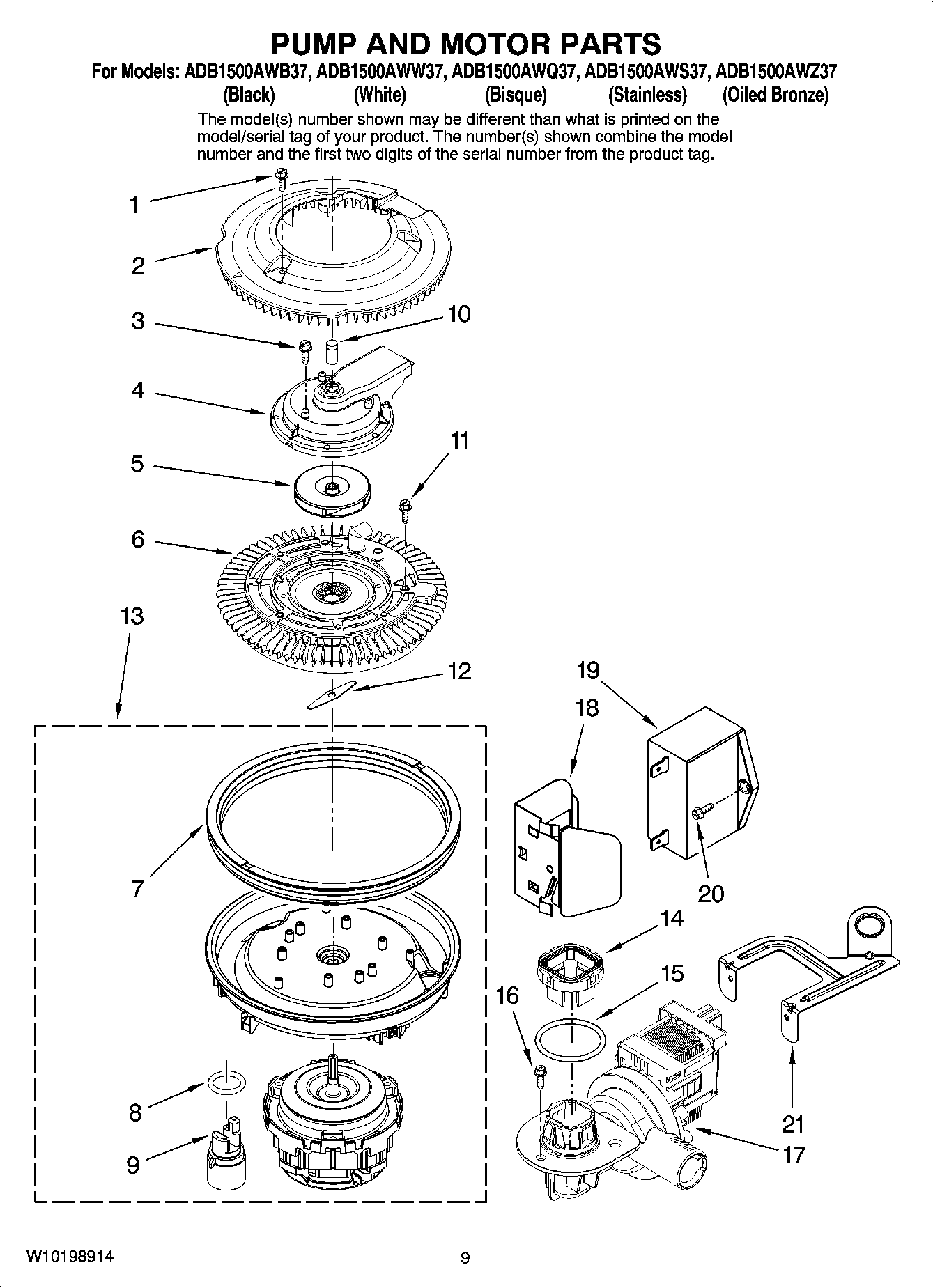

ADB1500AWS37 08 – PUMP AND MOTOR PARTS

ADB1500AWS37 08 – PUMP AND MOTOR PARTS

Written by

in

ADB1500AWS37 08 – PUMP AND MOTOR PARTS

Products

PositionProduct
1MAY 99002666
2WPW10166788 Whirlpool Dishwasher Filter Frame
3SCREW, STAINLESS PAN HEAD
4DISCHARGE HOUSING ASSY (UPR)
5WP99002659 Whirlpool Impeller
6Filter/Flowplate Assembly
7GASKET, PUMP
899002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
9MAY 99003613
10MAY 99003697
11SCREW, DISCHARGE HOUSING
12MAY 99003427
13WASH MOTOR ASSY SEAL NOT INCL
14MAY 99003309
15MAY 99002857
16SCREW, TRUSS HEAD (10-18X.75)
17DRAIN PUMP ASSEMBLY
18MAY W10167912
19CAPACITOR, MOTOR
20SCREW 10-32X.400 (T-20 HEAD)
21MAY 99002752
