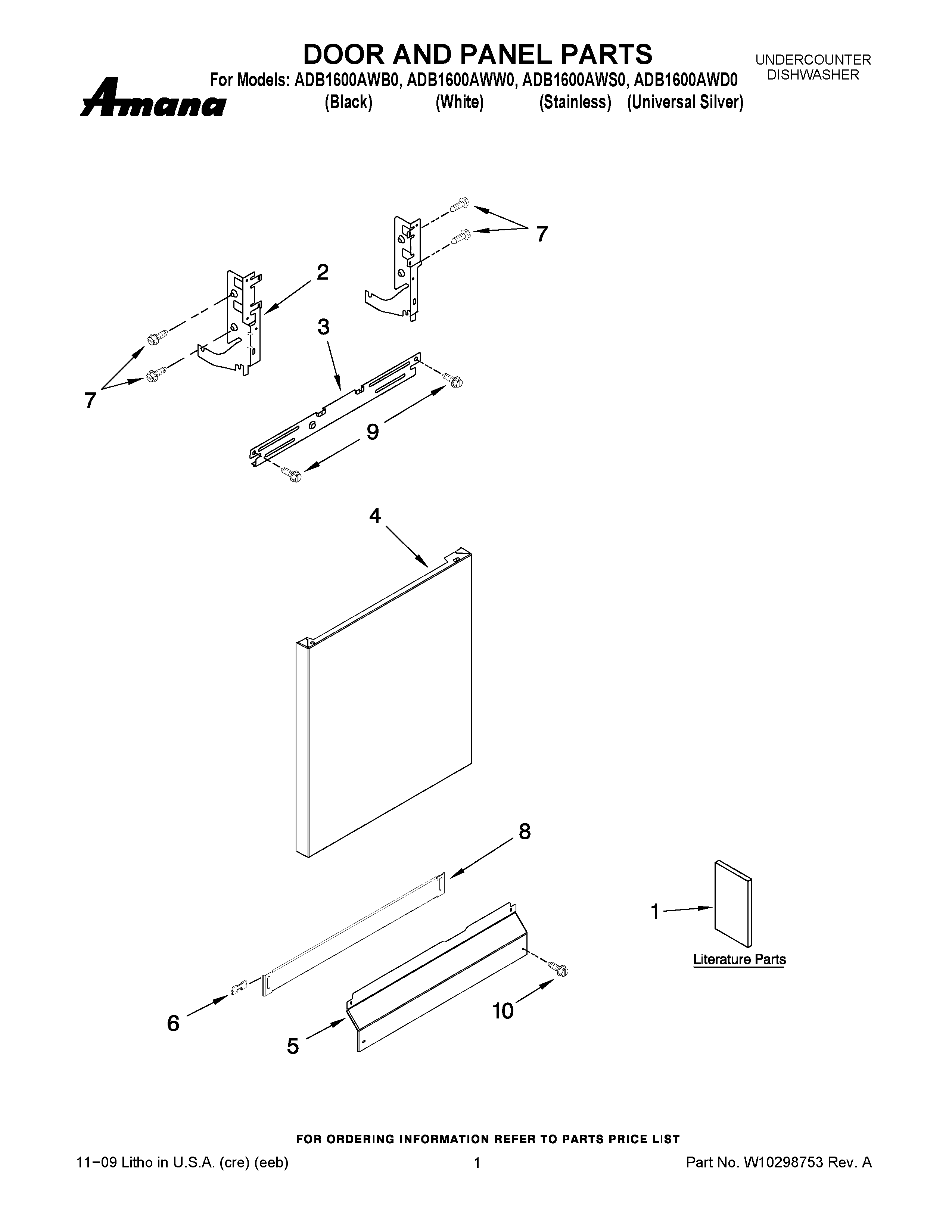

ADB1600AWB0 01 – DOOR AND PANEL PARTS

Written by

Products

Position	Product
1	MAY W10261420
1	MAY W10261418
1	MAY W10115043
1	MAY W10261419
1	TECH SHEET
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10274845
4	MAY W10274846
5	MAY 8573256
5	ACCESS PANEL (BLACK)
6	CLIP, GROUNDING
7	MAY 489470
8	TOE PANEL (BLACK)
8	TOE PANEL (WHITE)
9	Screw
10	SCREW (BLACK)
10	WP3400836 Whirlpool Dishwasher Screw
