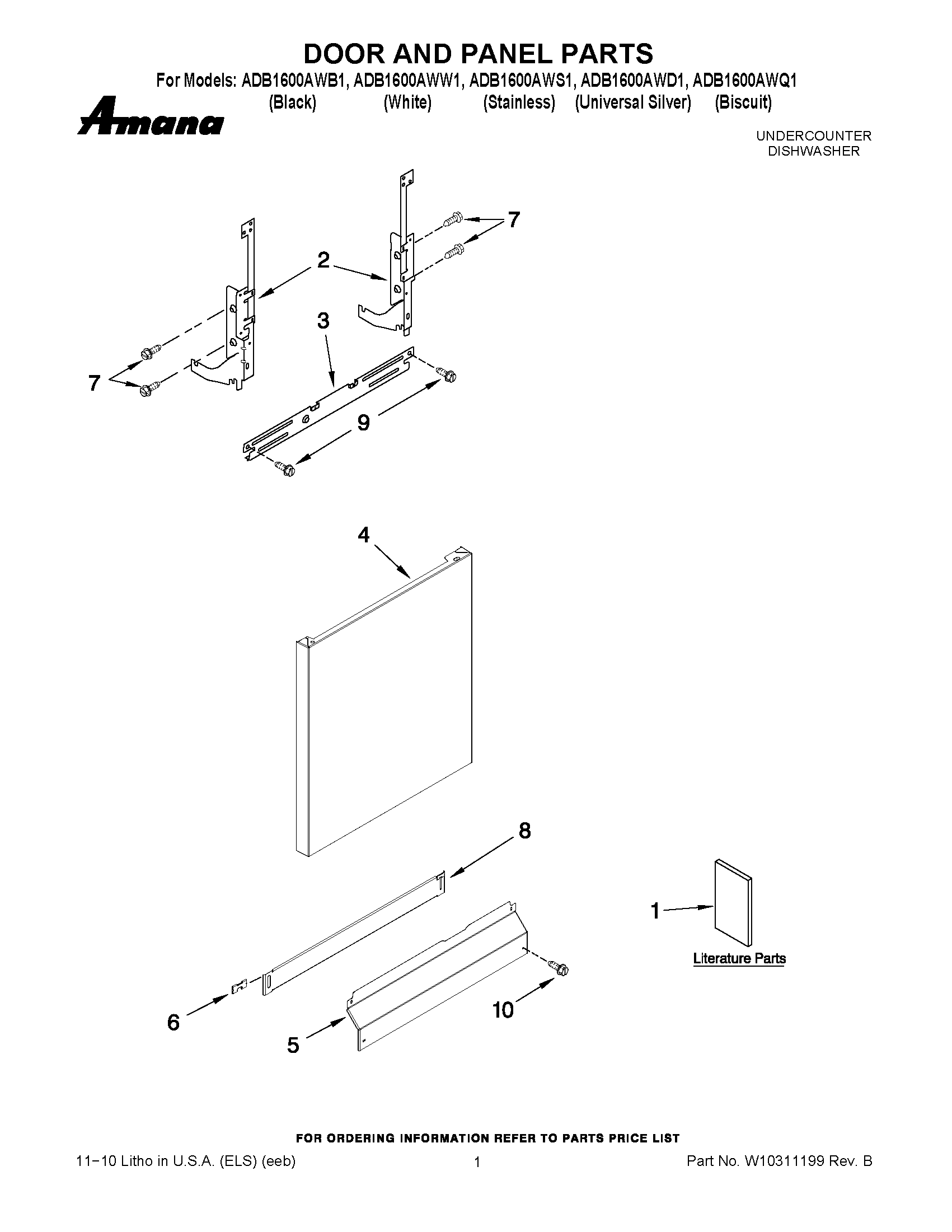

ADB1600AWB1 01 – DOOR AND PANEL PARTS

ADB1600AWB1 01 – DOOR AND PANEL PARTS

Written by

in

ADB1600AWB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10349750
1MAY W10261419
1MAY W10261418
1MAY W10300274
1TECH SHEET
2MAY W10143373
2MAY W10143374
3MAY W10331928
4MAY W10274898
4MAY W10274896
4PANEL FRONT (S. STEEL)
4MAY W10274895
4MAY W10274847
5MAY W10195779
5MAY W10195777
5MAY W10195778
6CLIP, GROUNDING
7MAY 489470
8MAY 8573288
8TOE PANEL (WHITE)
8TOE PANEL (BLACK)
9Screw
10SCREW (BLACK)
10WP3400836 Whirlpool Dishwasher Screw
