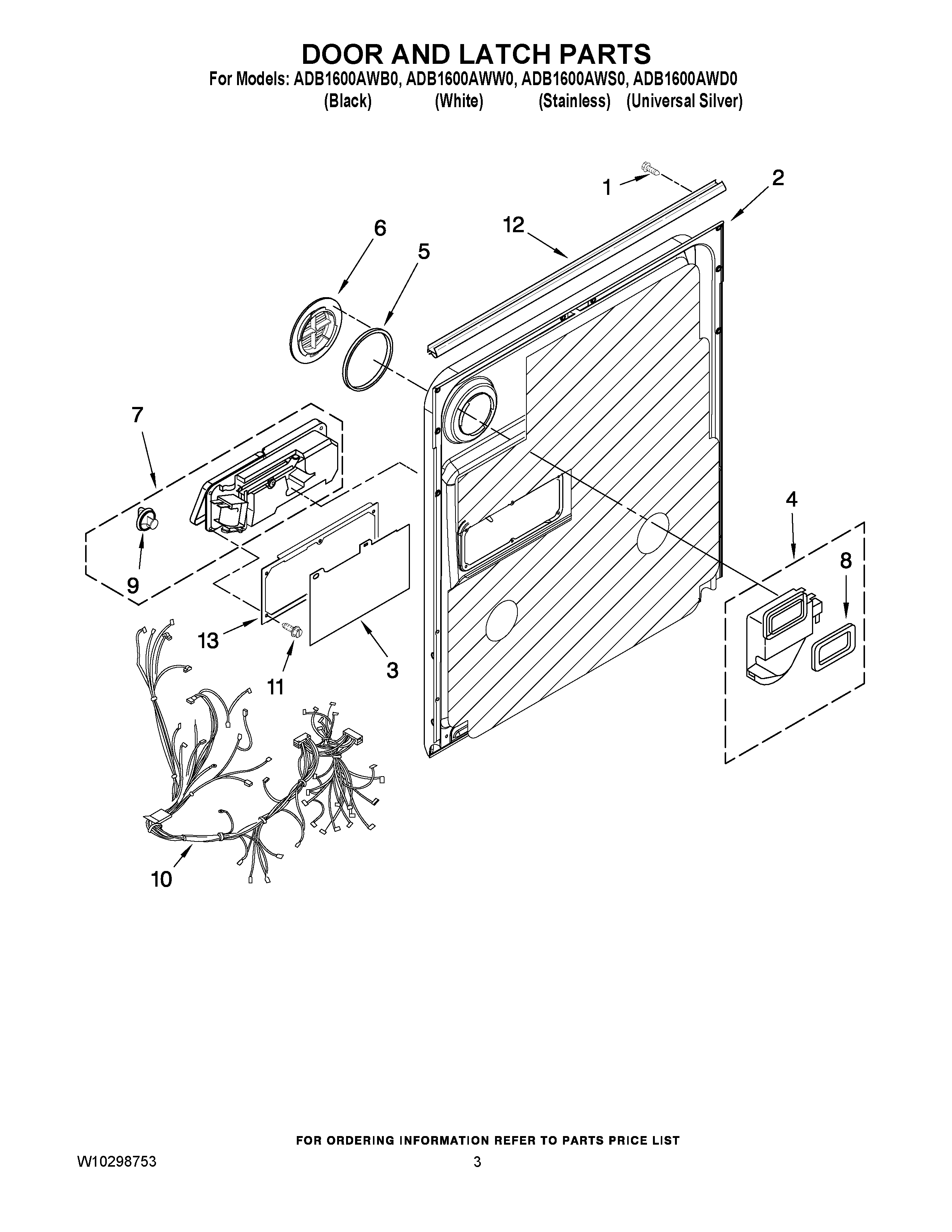

ADB1600AWD0 03 – DOOR AND LATCH PARTS

Written by

Products

Position	Product
1	SCREW
2	INNER DOOR MASTIC ASSEMBLY
3	SHIELD, DISPENSER
4	VENT ASSEMBLY
5	MAY 8269259
6	DEFLECTOR, VENT (ALSO ORDER ITEM 5)
7	MAY W10254206
9	MAY 8533380
10	MAY W10224458
11	MAY W10177098
12	MAY 8269296
13	BRACKET, DISPENSER
