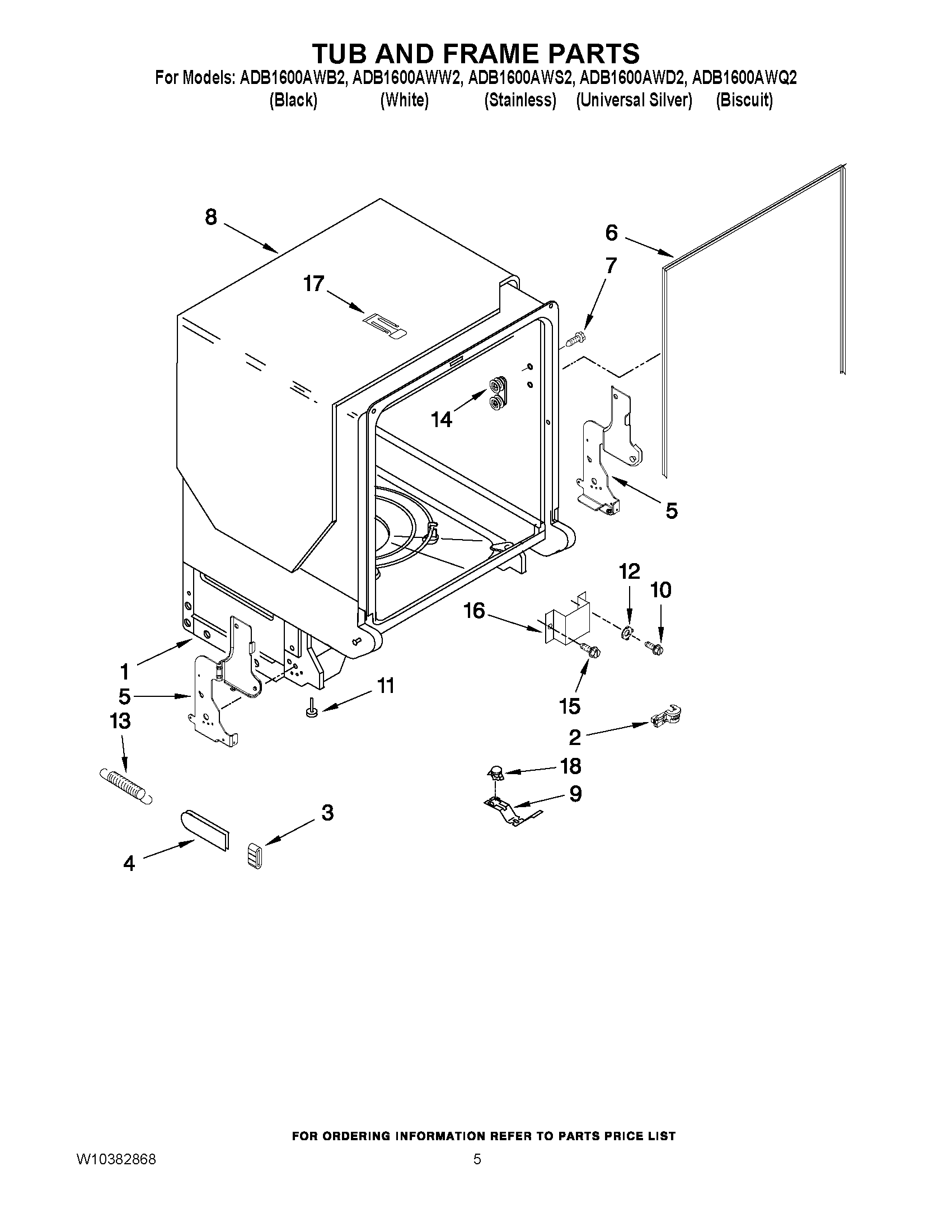

ADB1600AWD2 05 – TUB AND FRAME PARTS

ADB1600AWD2 05 – TUB AND FRAME PARTS

Written by

in

ADB1600AWD2 05 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10254860
2MAY 8573061
3SLEEVE, FRICTION
4MAY 8268990
5MAY W10185369
5MAY W10185368
6MAY W10284090
7SCREW
8MAY 8573240
9MAY 3378595
10MAY 3400014
11MAY 8524584
12WASHER, PRONGED CUP
13MAY 8524473
14MAY 8270016
15MAY 3400892
16MAY 8268991
17STRIKE, LATCH
18MAY 661566
