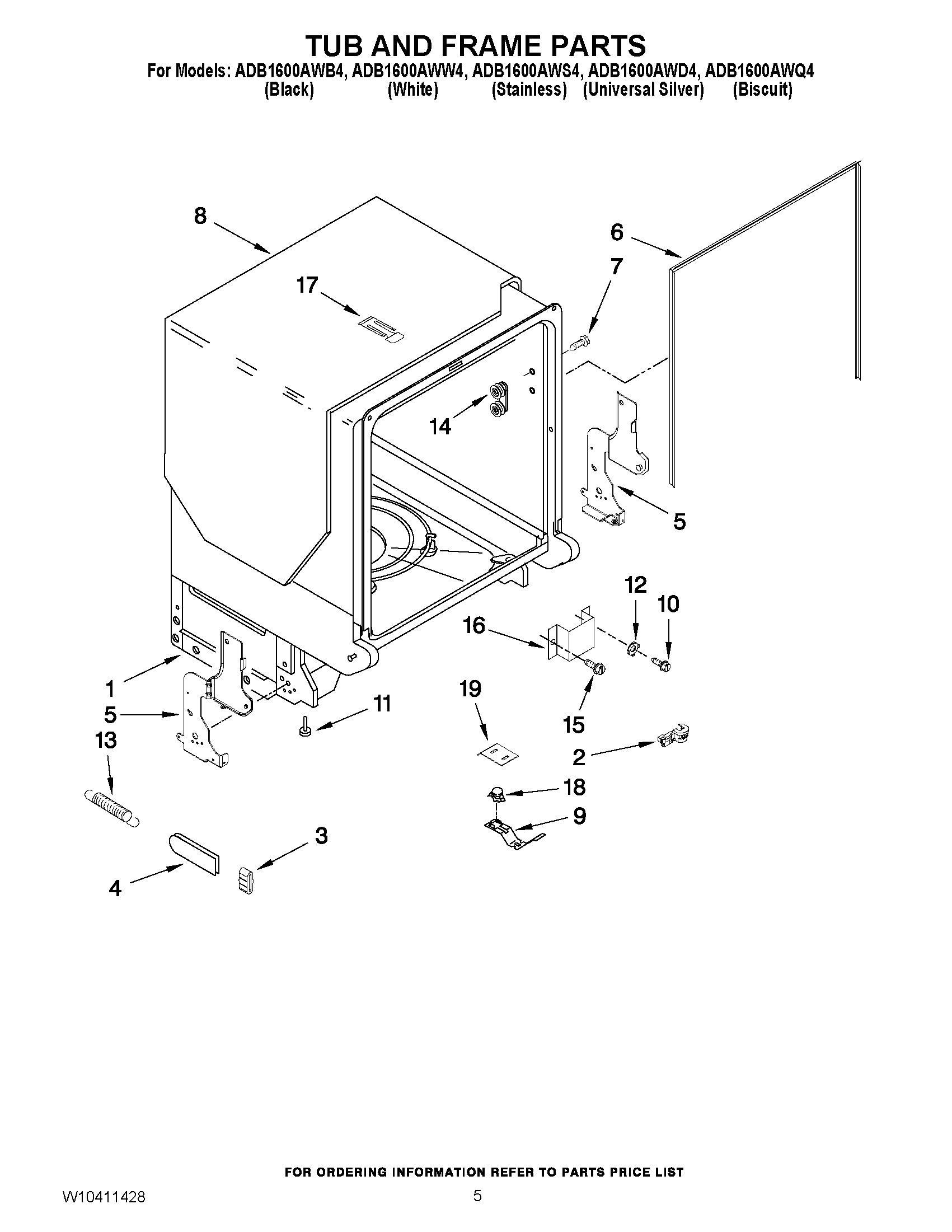

ADB1600AWD4 05 – TUB AND FRAME PARTS

Written by

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8573061
3	SLEEVE, FRICTION
4	MAY 8268990
5	MAY W10185369
5	MAY W10185368
6	MAY W10284090
7	SCREW
8	MAY 8573240
9	MAY 3378595
10	MAY 3400014
11	MAY 8524584
12	WASHER, PRONGED CUP
13	MAY 8524473
14	MAY 8270016
15	MAY 3400892
16	MAY 8268991
17	STRIKE, LATCH
18	MAY 661566
19	SHIELD, THERMOSTAT
