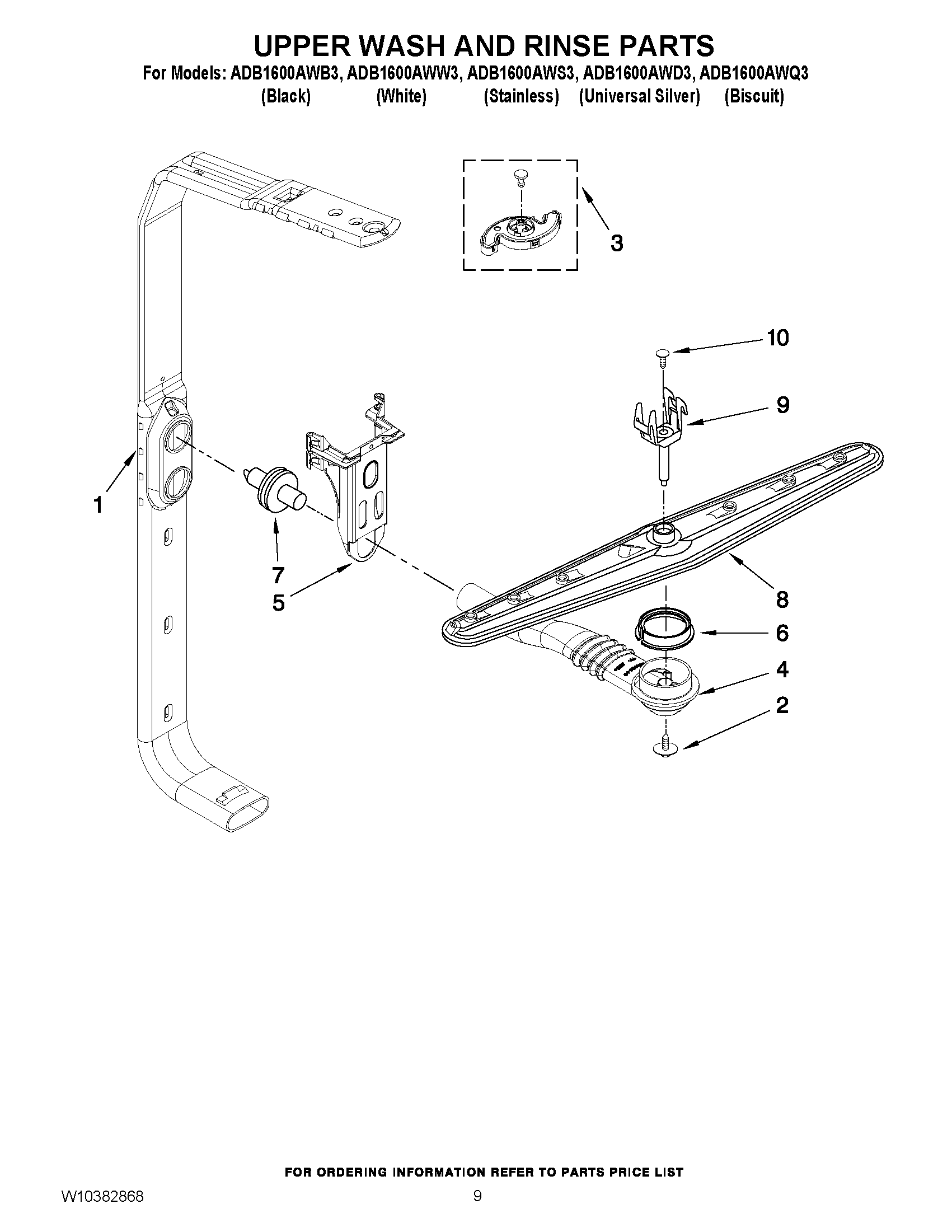

ADB1600AWQ3 07 – UPPER WASH AND RINSE PARTS

ADB1600AWQ3 07 – UPPER WASH AND RINSE PARTS

Written by

in

ADB1600AWQ3 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1FEED TUBE SILVERWARE ZONE (ALSO INC. No.3)
2MAY 8533889
3SPRAYARM, 3RD LEVEL
4MAY W10258149
5MAY 3385160
6MAY 8268433
7NOZZLE-FEED
8SPRAY ARM
9MOUNT,SPRAY ARM
10RETAINER, PUSH-IN
