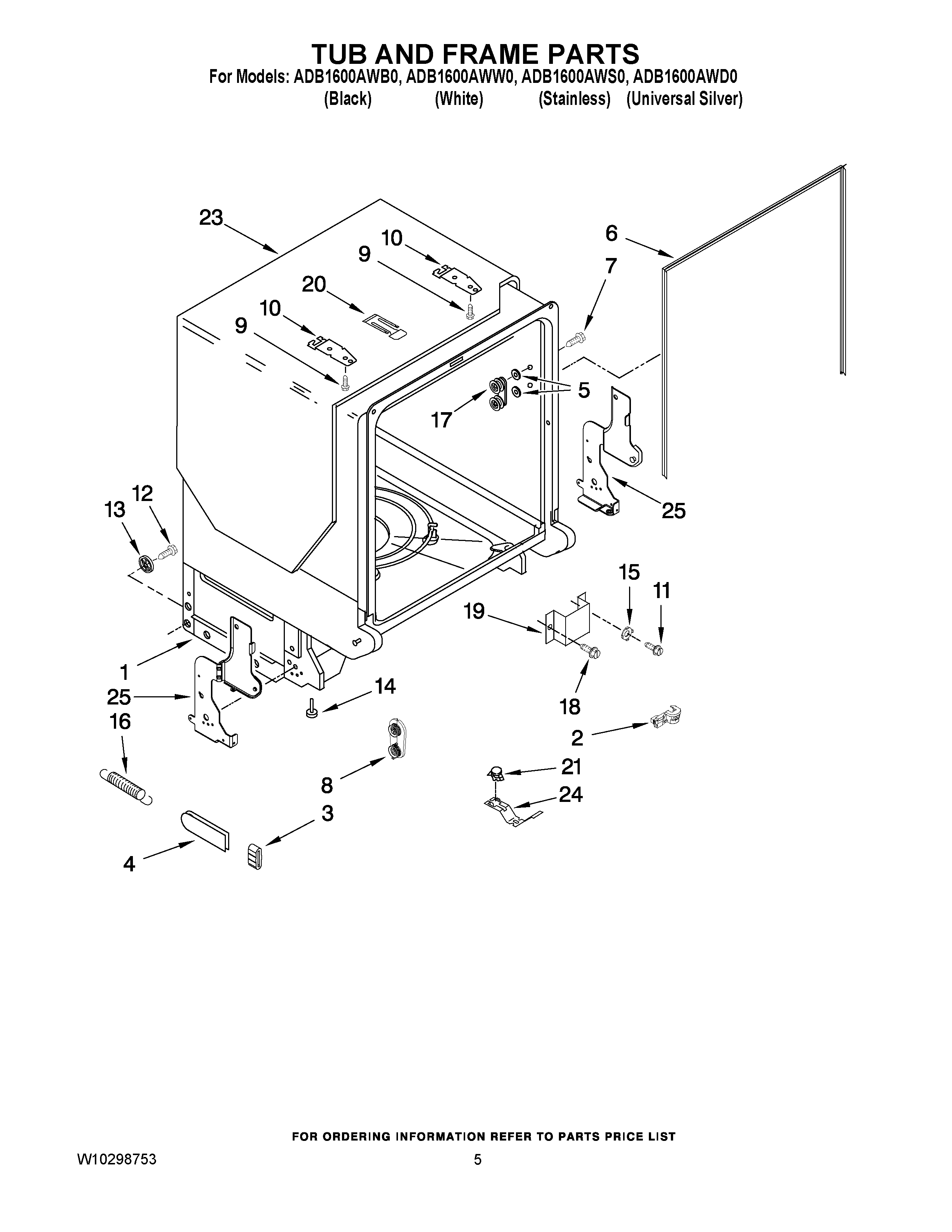

ADB1600AWS0 05 – TUB AND FRAME PARTS

ADB1600AWS0 05 – TUB AND FRAME PARTS

Written by

in

ADB1600AWS0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10254860
2	MAY 8573061
3	SLEEVE, FRICTION
4	MAY 8268990
5	MAY 9743002
6	MAY 8268888
7	SCREW
8	DOOR BALANCE ASSEMBLY
9	MAY 3367670
10	MAY 8269145
11	MAY 3400014
12	SCREW
13	MAY 8268931
14	MAY 8524584
15	WASHER, PRONGED CUP
16	MAY 8524473
17	MAY 8270016
18	MAY 3400892
19	MAY 8268991
20	STRIKE, LATCH
21	MAY 661566
23	MAY 8573240
24	MAY 3378595
25	MAY W10185368
25	MAY W10185369
