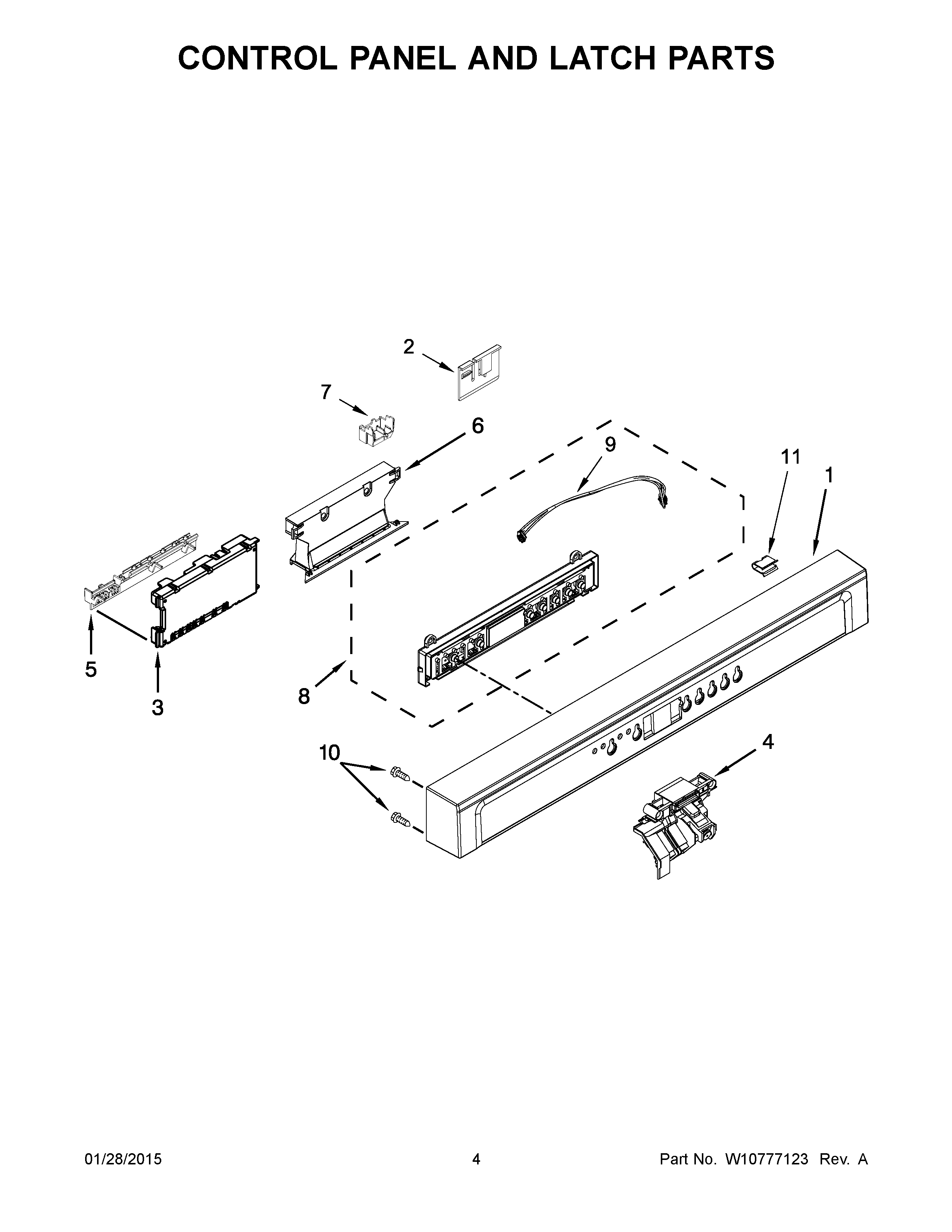

ADB1700ADB1 03 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	MAY W10708648
1A	MAY W10708649
2	CLIP, CONTROL
3	MAY W10722549
4	LATCH ASSEMBLY (INCLUDES SWITCH)
5	MAY W10194937
6	MAY W10629511
7	MAY W10401190
8	MAY W10671804
9	MAY W10566903
10	SCREW
11	MAY W10485367
