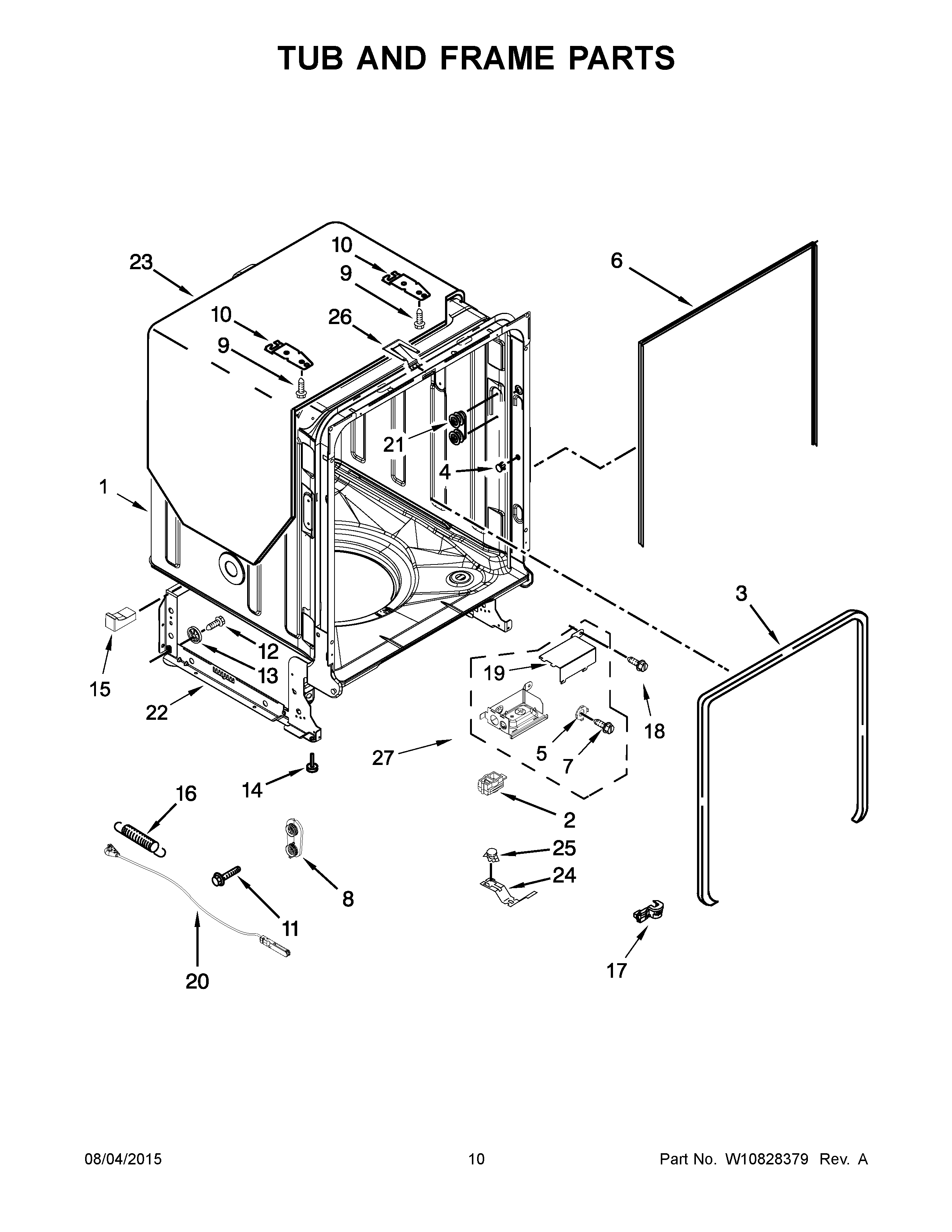

ADB1700ADB2 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10681492
2MAY W10292870
3SEAL, DOOR
4MAY W10623354
5WASHER, PRONGED CUP
6SEAL, CABINET
7MAY 3400014
8DOOR BALANCE ASSEMBLY
9MAY 3367670
10MAY 8269145
11SCREW
12MAY W10348411
13WHEEL LEG
14LEVELER, LEG
15SPACER, TUB/BRACE (LEFT)
15ASPACER, TUB/BRACE (RIGHT)
16MAY 8270020
17MAY W10337661
18MAY 3400892
19COVER, TERMINAL BOX
20CABLE, DOOR ASSEMBLY
21WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
22SUPPORT ASSEMBLY, REAR
23MAY 8573240
24MAY W10300703
25MAY W10195091
26STRIKE, LATCH
27ASSEMBLY, TERMINAL BOX
