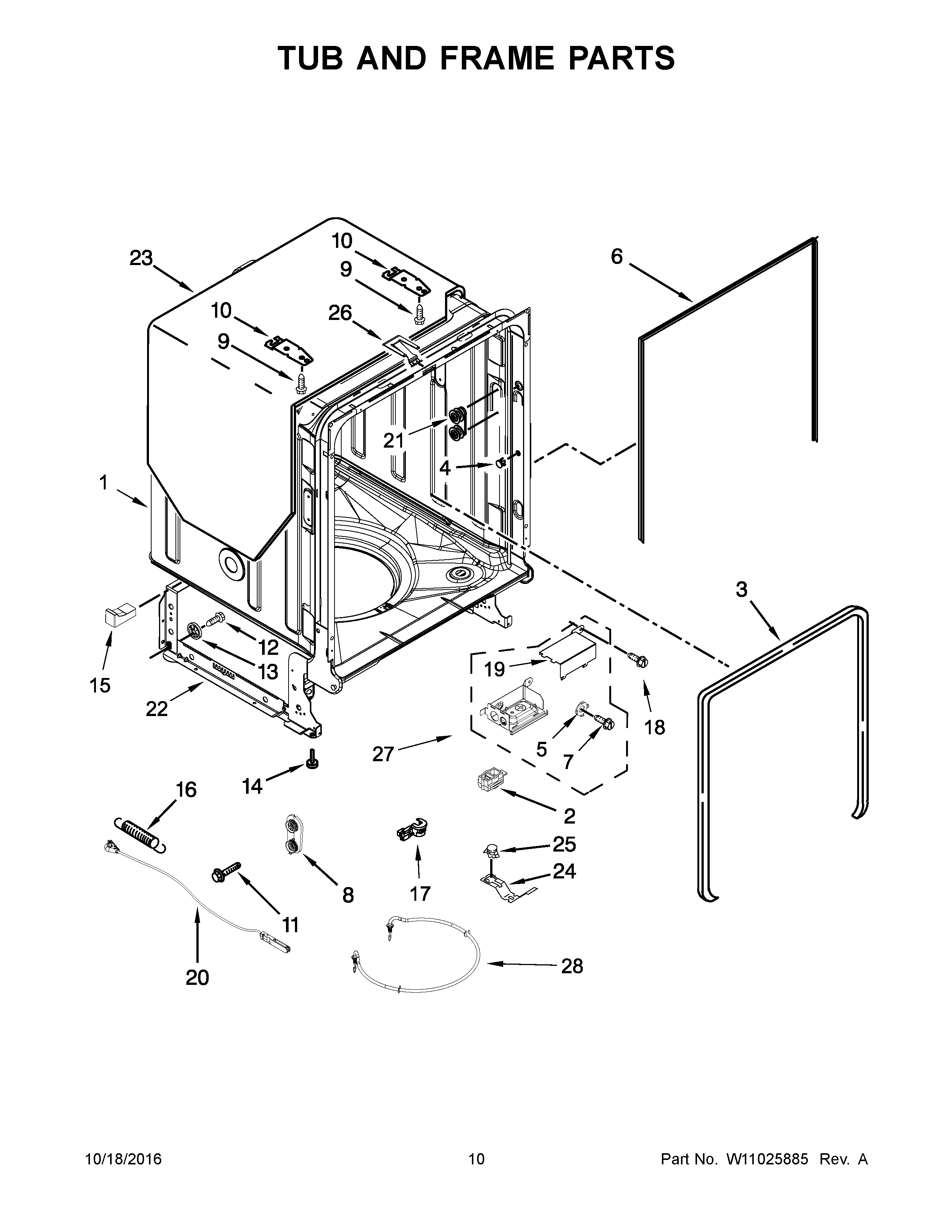

ADB1700ADB3 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10681492
2	MAY W10292870
3	SEAL, DOOR
4	PLUG, TUB
5	WASHER, PRONGED CUP
6	SEAL, CABINET
7	MAY 3400014
8	DOOR BALANCE ASSEMBLY
9	MAY 3367670
10	MAY 8269145
11	SCREW
12	MAY W10348411
13	WHEEL LEG
14	LEVELER, LEG
15	SPACER, TUB/BRACE (LEFT)
15A	SPACER, TUB/BRACE (RIGHT)
16	MAY 8270020
17	MAY W10337661
18	MAY 3400892
19	COVER, TERMINAL BOX
20	CABLE, DOOR ASSEMBLY
21	WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
22	SUPPORT ASSEMBLY, REAR
23	MAY W10866978
24	MAY W10300703
25	MAY W10195091
26	STRIKE, LATCH
27	ASSEMBLY, TERMINAL BOX
28	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
