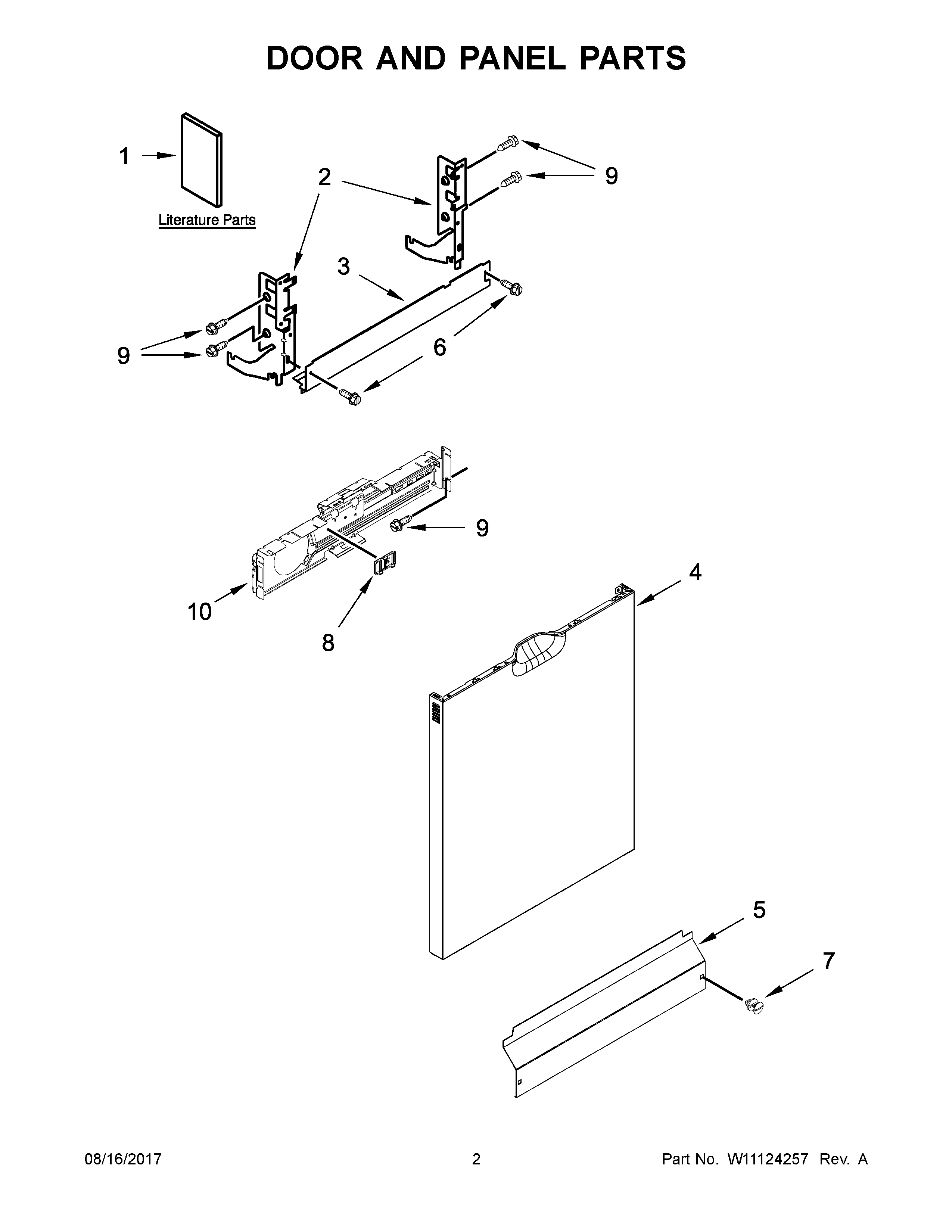

ADB1700ADB4 02 – DOOR AND PANEL PARTS

ADB1700ADB4 02 – DOOR AND PANEL PARTS

Written by

in

ADB1700ADB4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1BMAY W10708663
1AMAY W10921034
1MAY W10741197
2MAY 8534854
2AMAY 8534853
3BARRIER, VAPOR
4BPANEL, FRONT (INCLUDES NAMEPLATE) (STAINLESS)
4MAY W10734043
4AMAY W10735084
5MAY W10441006
5AMAY W10441007
6SCREW (BLACK)
7AMAY W10503549
7MAY W10503548
8MAY W10463662
9SCREW
10MAY W10641745
