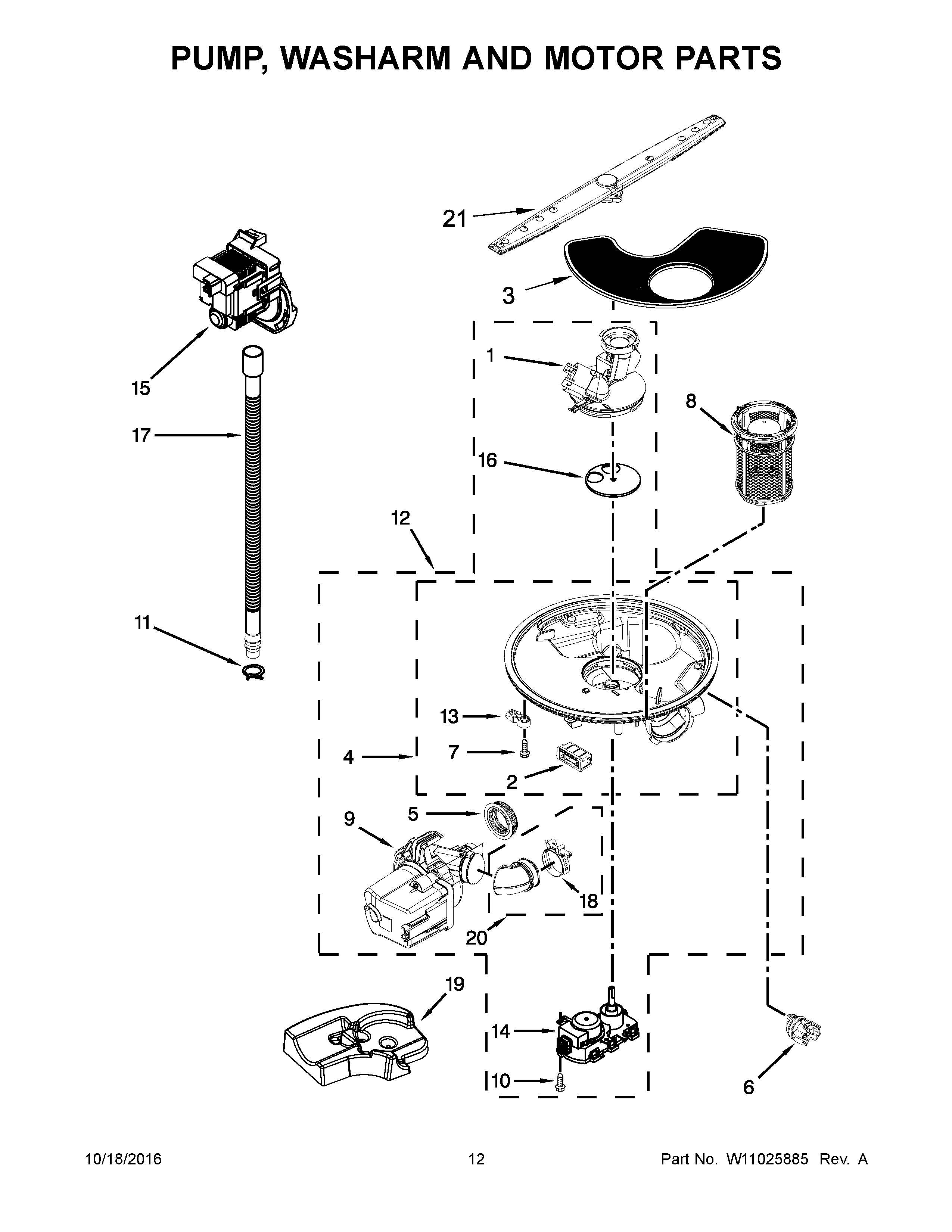

ADB1700ADS3 07 – PUMP, WASHARM AND MOTOR PARTS

ADB1700ADS3 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

ADB1700ADS3 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1COVER, OUTLET
2MOTOR, ISOLATOR
3SCREEN
4SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5GROMMET
6INDICATOR, OPTICAL WASH
7MAY W10348407
8FILTER CUP ASSEMBLY
9MOTOR (ALSO ORDER ITEMS 5 & 20)
10MAY 9741232
11HOSE CLAMP
12MAY W10733484
13TAB, SUMP
14MOTOR, DIVERTER
15MAY W10348269
16DISC, DIVERTER
17MAY 8269144
18CLAMP, HOSE
19DAMPER, SUMP ASSEMBLY
20HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
21SPRAYARM
