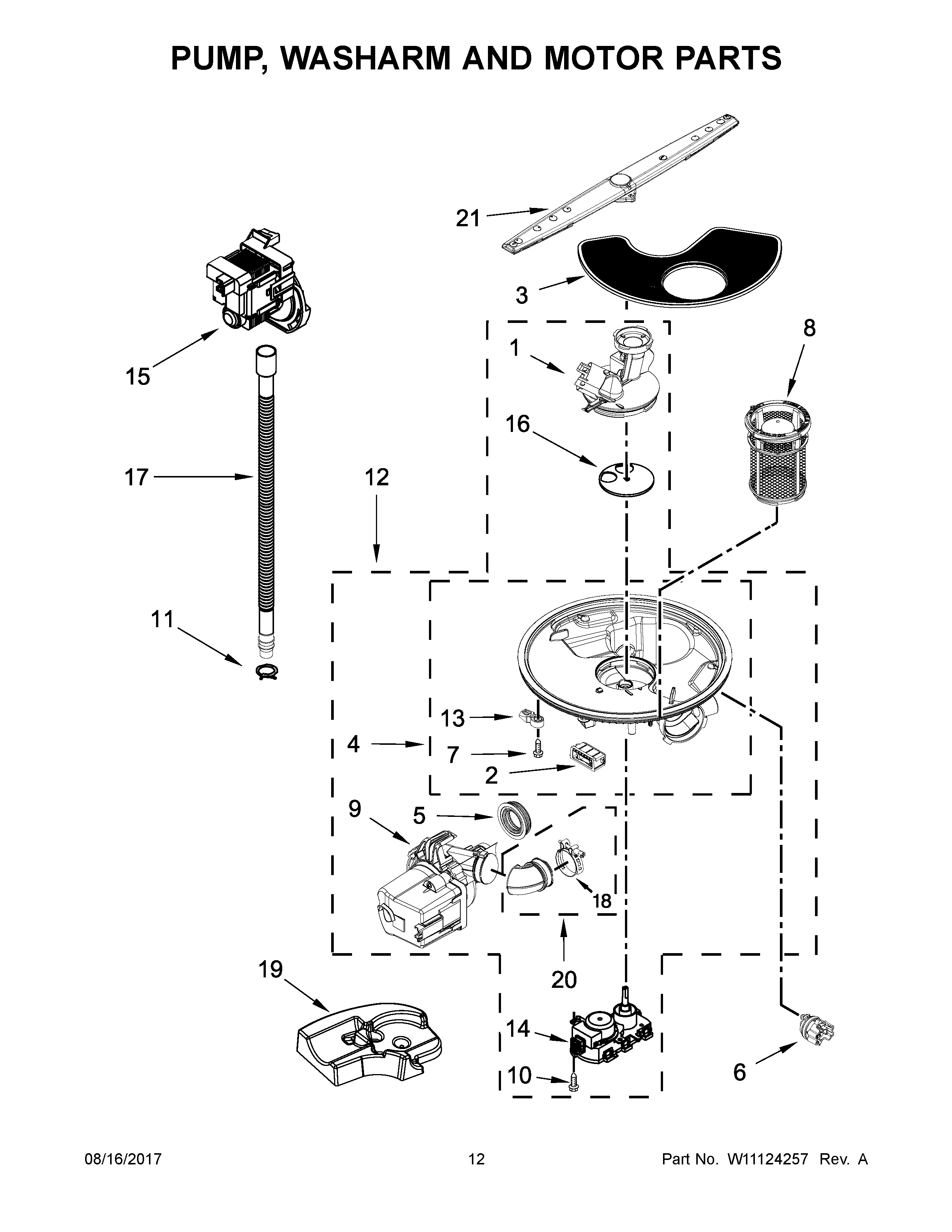

ADB1700ADS4 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	COVER, OUTLET
2	MOTOR, ISOLATOR
3	SCREEN
4	SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5	GROMMET
6	INDICATOR, OPTICAL WASH
7	MAY W10348407
8	FILTER CUP ASSEMBLY
9	MOTOR (ALSO ORDER ITEMS 5 & 20)
10	MAY 9741232
11	HOSE CLAMP
12	SUMP & MOTOR ASSEMBLY
13	TAB, SUMP
14	MOTOR, DIVERTER
15	MAY W10724439
16	DISC, DIVERTER
17	MAY 8269144
18	CLAMP, HOSE
19	DAMPER, SUMP ASSEMBLY
20	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
21	SPRAYARM
