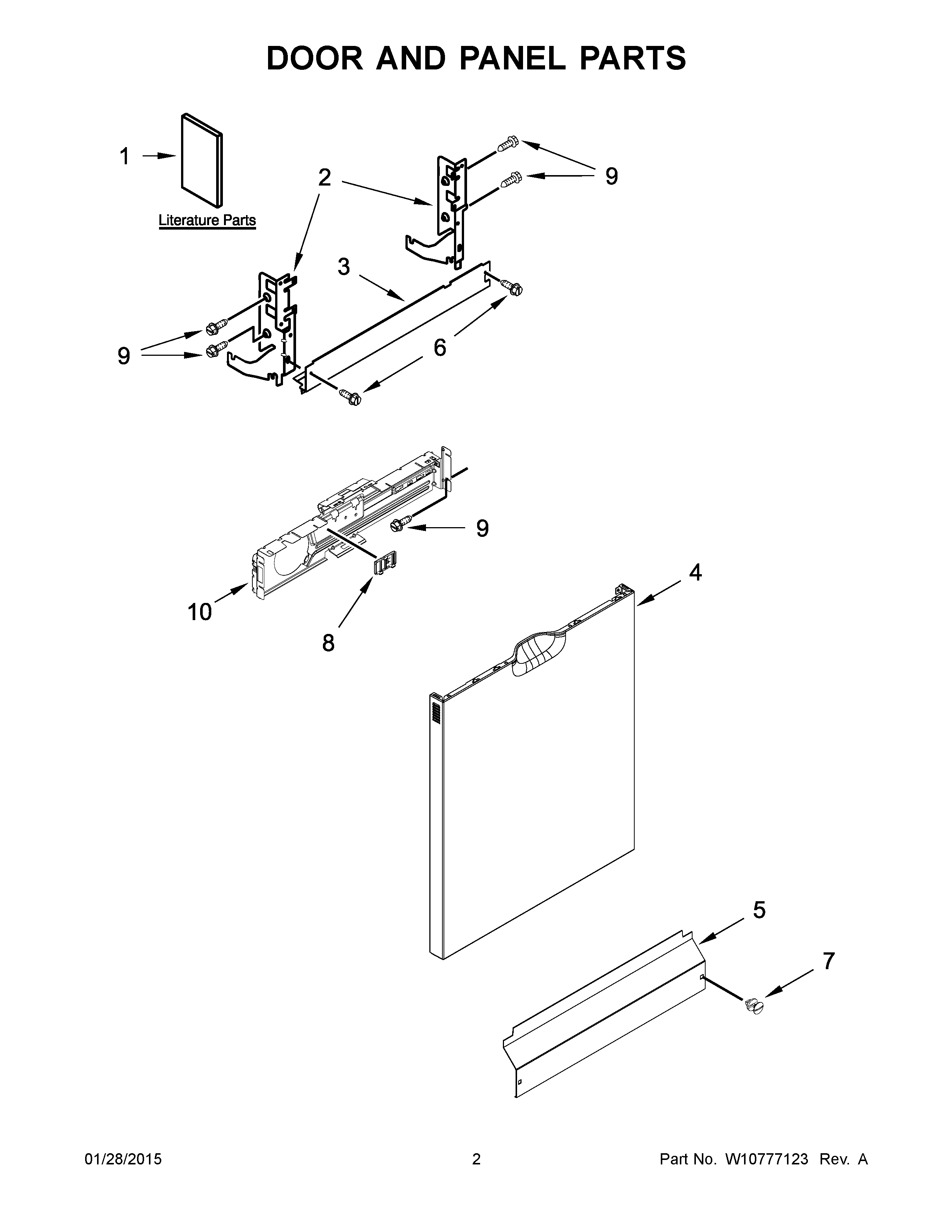

ADB1700ADW1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W10733305
1BMAY W10708663
1CMAY W10610059
1DMAY W10610060
1MAY W10741197
2MAY 8534854
2AMAY 8534853
3MAY W10321448
4MAY W10734043
4AMAY W10735084
4BPANEL, FRONT (INCLUDES NAMEPLATE) (STAINLESS)
5MAY W10441006
5AMAY W10441007
6Screw
7AMAY W10503549
7MAY W10503548
8MAY W10463662
9SCREW
10MAY W10641745
