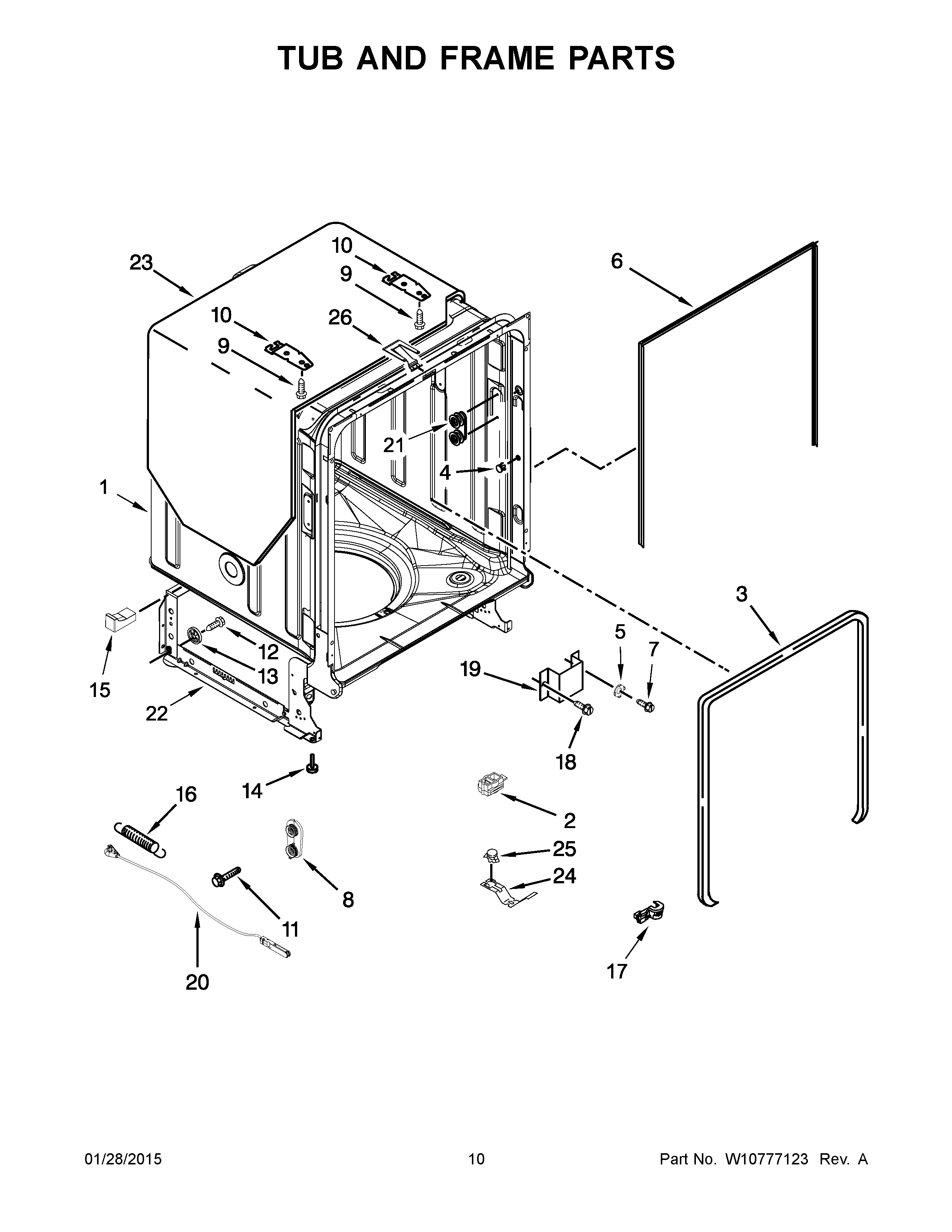

ADB1700ADW1 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10681492
2	MAY W10292870
3	SEAL, DOOR
4	MAY W10082838
5	WASHER, PRONGED CUP
6	SEAL, CABINET
7	MAY 3400014
8	DOOR BALANCE ASSEMBLY
9	MAY 3367670
10	MAY 8269145
11	SCREW
12	MAY W10348411
13	WHEEL LEG
14	LEVELER, LEG
15A	SPACER, TUB/BRACE (RIGHT)
15	SPACER, TUB/BRACE (LEFT)
16	MAY 8270020
17	MAY W10337661
18	MAY 3400892
19	COVER, TERMINAL BOX
20	CABLE, DOOR ASSEMBLY
21	WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
22	SUPPORT ASSEMBLY, REAR
23	MAY 8573240
24	MAY W10300703
25	MAY W10195091
26	STRIKE, LATCH
