ADB2200AWB 02 – DOOR

ADB2200AWB 02 – DOOR

Written by

in

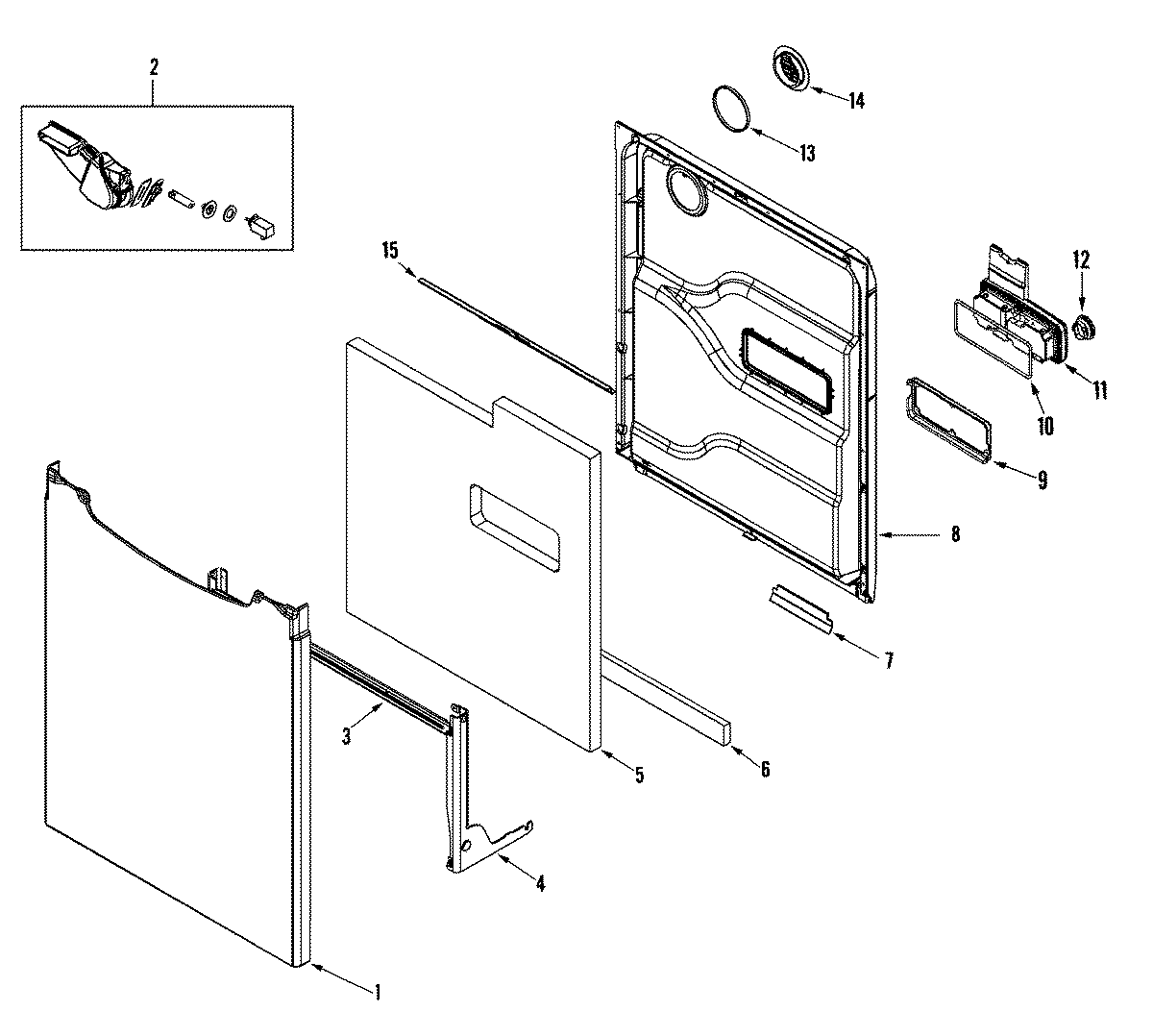

ADB2200AWB 02 – DOOR

Products

PositionProduct
1PANEL, DECO (W/DAMPER-BLK)
2VENT HOUSING ASSEMBLY
3MAY 99002604
4MAY 99001075
4WPW10118637 Whirlpool Dishwasher Bracket
4MAY 99002929
5INSULATION, DOOR
6WPW10117748 Whirlpool Dishwasher Insulation Pad
7WP99002589 Whirlpool Dishwasher Door Seal
8DOOR, INNER (W/DAMPER)
96-918900 Whirlpool Dishwasher Bracket
9SCREW, No.8X1/2 HEX WASHER HEAD
10MAY 99002270
11MAY 99002991
12KNOB, RINSE AID (W/O-RING)
13MAY 99002186
1499002590 Whirlpool Dishwasher Door Vent Bezel
15WPY912620 Whirlpool Dishwasher Screw
15MAY 99002586
