ADB2200AWQ 02 – DOOR

ADB2200AWQ 02 – DOOR

Written by

in

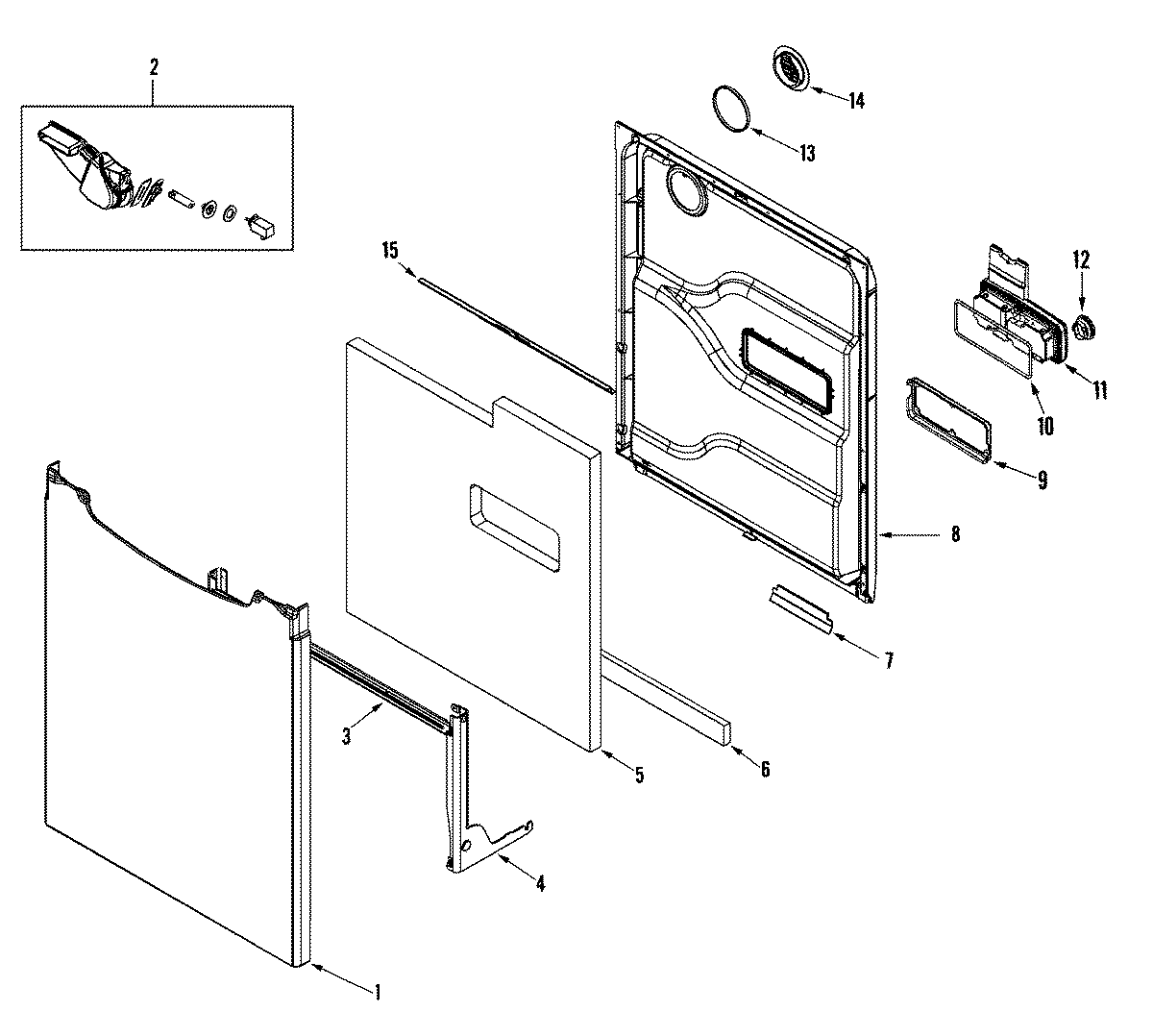

ADB2200AWQ 02 – DOOR

Products

PositionProduct
1MAY 99002769
2VENT HOUSING ASSEMBLY
3MAY 99002604
4MAY 99002929
4MAY 99001075
4WPW10118637 Whirlpool Dishwasher Bracket
5INSULATION, DOOR
6WPW10117748 Whirlpool Dishwasher Insulation Pad
7WP99002589 Whirlpool Dishwasher Door Seal
8DOOR, INNER (W/DAMPER)
96-918900 Whirlpool Dishwasher Bracket
9SCREW, No.8X1/2 HEX WASHER HEAD
10MAY 99002270
11MAY 99002991
12KNOB, RINSE AID (W/O-RING)
13MAY 99002186
1499002590 Whirlpool Dishwasher Door Vent Bezel
15WPY912620 Whirlpool Dishwasher Screw
15MAY 99002586
