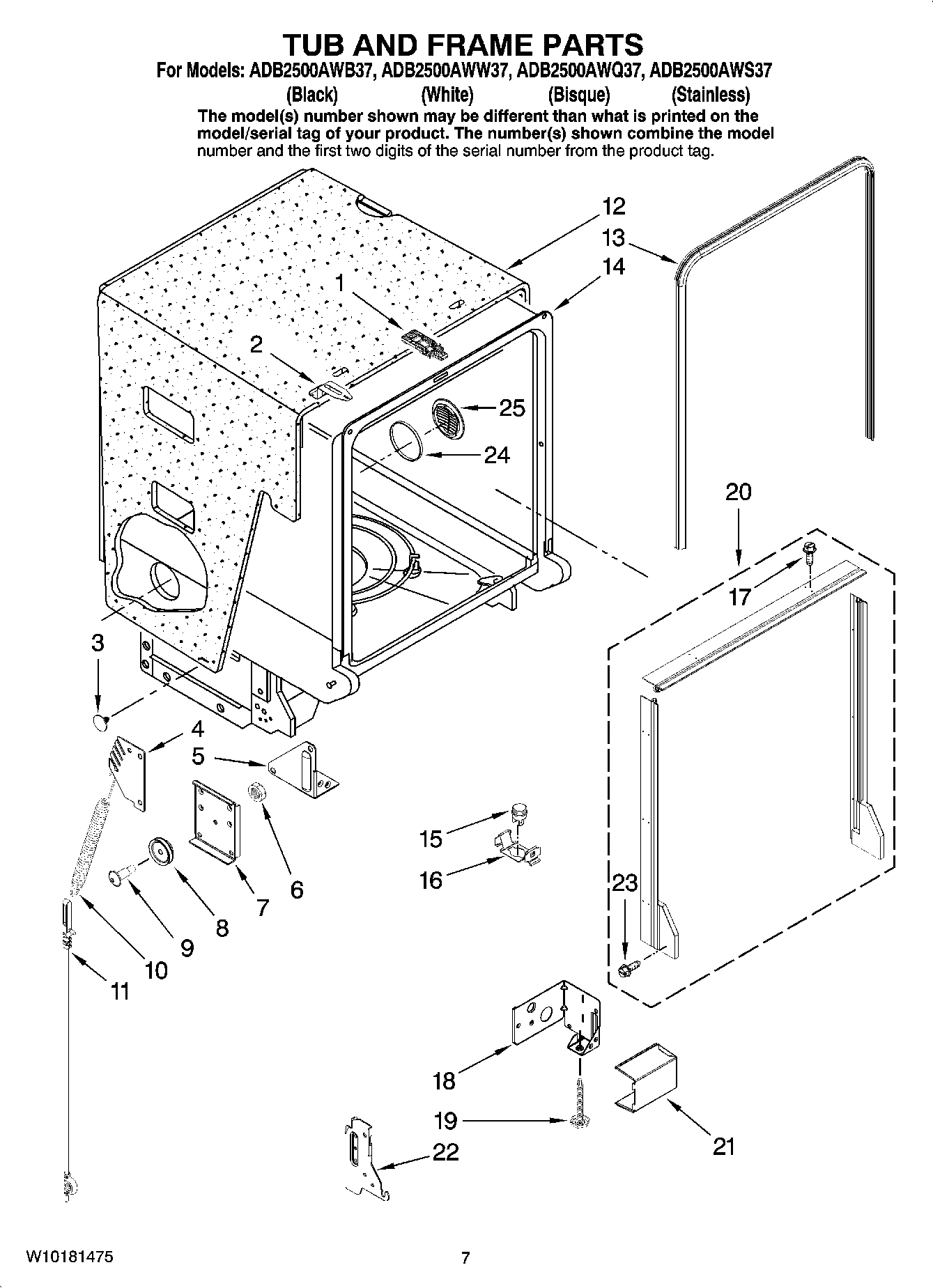

ADB2500AWB37 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 99002648
3	FASTENER, INSULATION
4	6-918346 Whirlpool Dishwasher Bracket
5	BRACKET, SUPPORT (LT)
6	MAY 99003688
7	MAY 99003686
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99003687
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	WPW10223013 Whirlpool Dishwasher Insulation Pad
13	MAY 99002588
14	MAY W10142297
15	MAY 99002633
16	MAY 99002634
17	MAY 99002692
18	BRACKET, JUNCTION BOX SUPPORT
19	WPW10143258 Whirlpool Dishwasher Leg Leveler
20	MAY W10189262
20	MAY W10189264
20	MAY W10189265
21	MAY 99002638
22	MAY W10117484
22	MAY W10117485
23	SCREW 10-32X.400 (T-20 HEAD)
24	MAY W10200542
25	Grill,Air/Water Inlet
