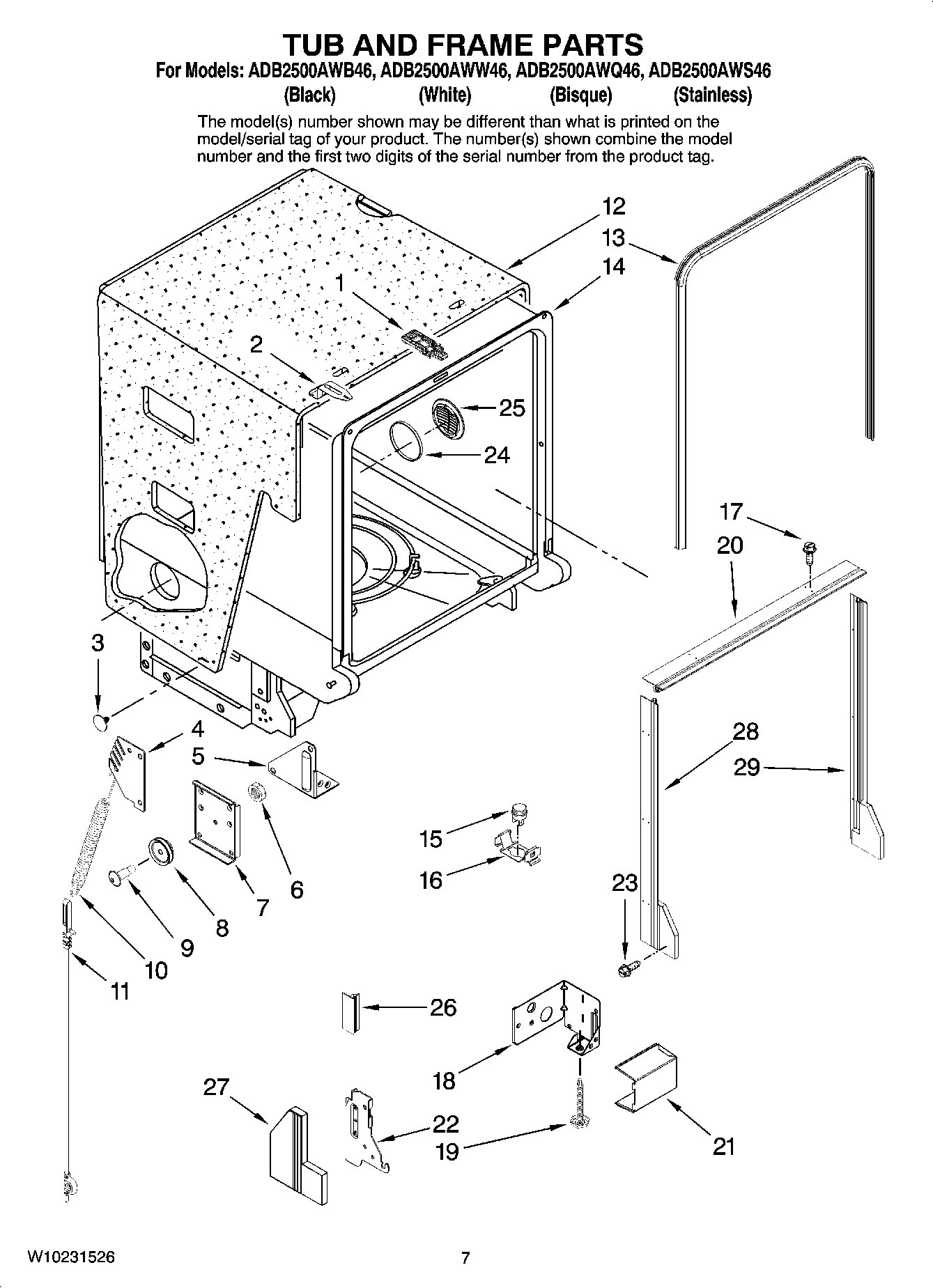

ADB2500AWB46 07 – TUB AND FRAME PARTS

ADB2500AWB46 07 – TUB AND FRAME PARTS

Written by

in

ADB2500AWB46 07 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10119337
2MAY 99002648
3FASTENER, INSULATION
46-918346 Whirlpool Dishwasher Bracket
5BRACKET, SUPPORT (LT)
6MAY 99003688
7MAY W10173920
8WP99002608 Whirlpool Dishwasher Cable Roller
9MAY 99003687
10WP99002598 Whirlpool Door Spring
11WP99003446 Whirlpool Door Cable
12WPW10223013 Whirlpool Dishwasher Insulation Pad
13MAY 99002588
14MAY W10142297
15MAY 99002633
16MAY 99002634
17MAY 99002692
18BRACKET, JUNCTION BOX SUPPORT
19MAY W10143258
20MAY W10164698
21MAY 99002638
22MAY W10137495
22MAY W10137496
23SCREW 10-32X.400 (T-20 HEAD)
24MAY W10200542
25Grill,Air/Water Inlet
26GAP SEAL, TOE KICK (BLK)
26GAP SEAL, TOE KICK (WHT)
27TRIM STRIP ASSEMBLY (LT)
27TRIM STRIP ASSEMBLY (RT)
28ASSEMBLY (LEFT)
29ASSEMBLY (RIGHT)
