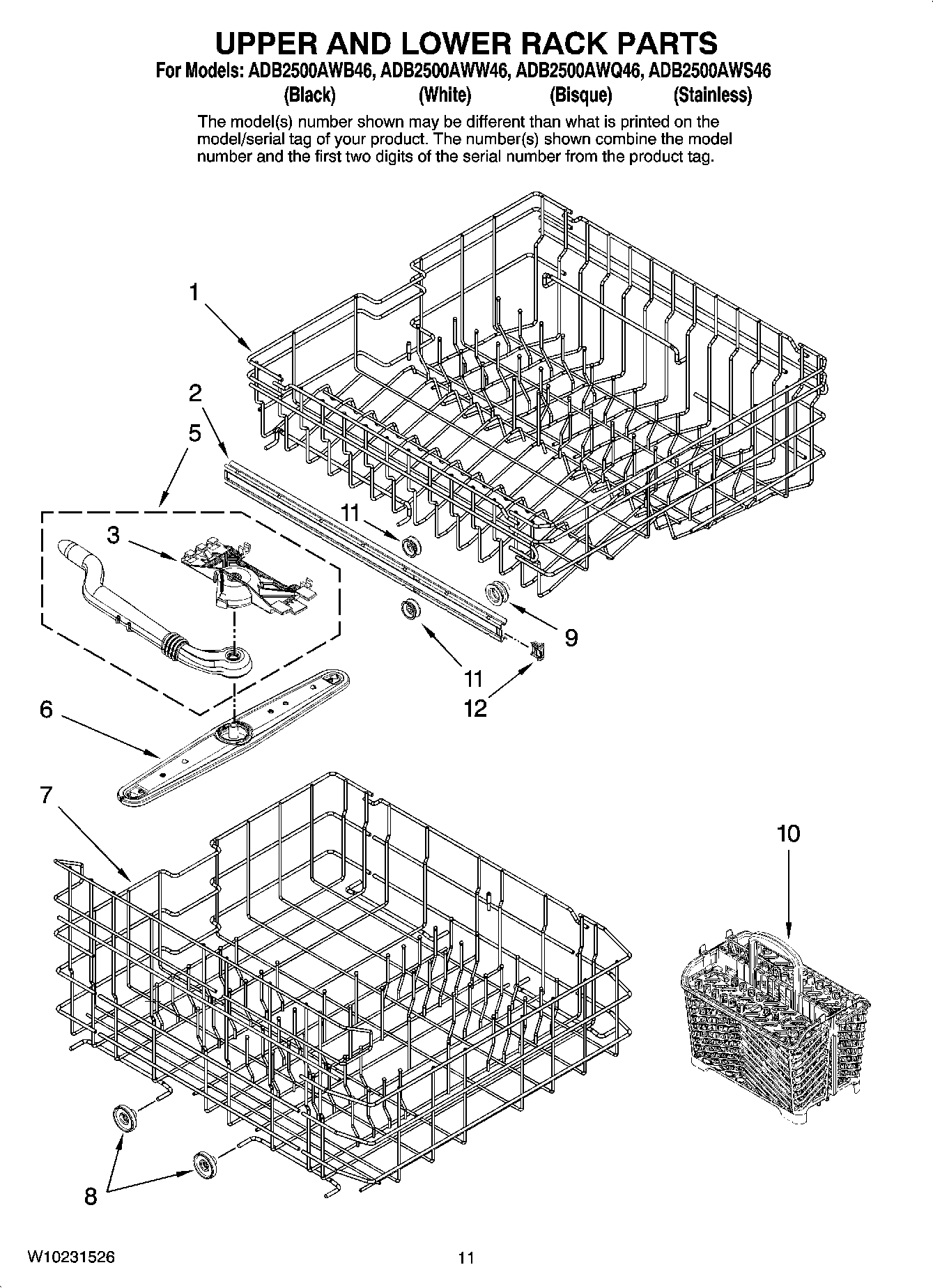

ADB2500AWB46 09 – UPPER AND LOWER RACK PARTS

Written by

Products

Position	Product
1	MAY W10120535
2	TRACK, RACK
3	CLIP, UPR WASH MANIFOLD (FRT)
5	WASH MANIFOLD ASSY (UPR)
6	WP99003070 Whirlpool Dishwasher Wash Arm
7	MAY W10120547
8	WP99002780 Whirlpool Lower Wheel Assembly
9	WP99002781 Whirlpool Dishwasher Wheel
10	MAY 99003429
11	WP99002947 Whirlpool Tub Wheel
12	WPW10261227 Whirlpool Dishwasher Stop Assembly
