ADB2500AWQ 05 – TRACK & RACK ASSEMBLY

ADB2500AWQ 05 – TRACK & RACK ASSEMBLY

Written by

in

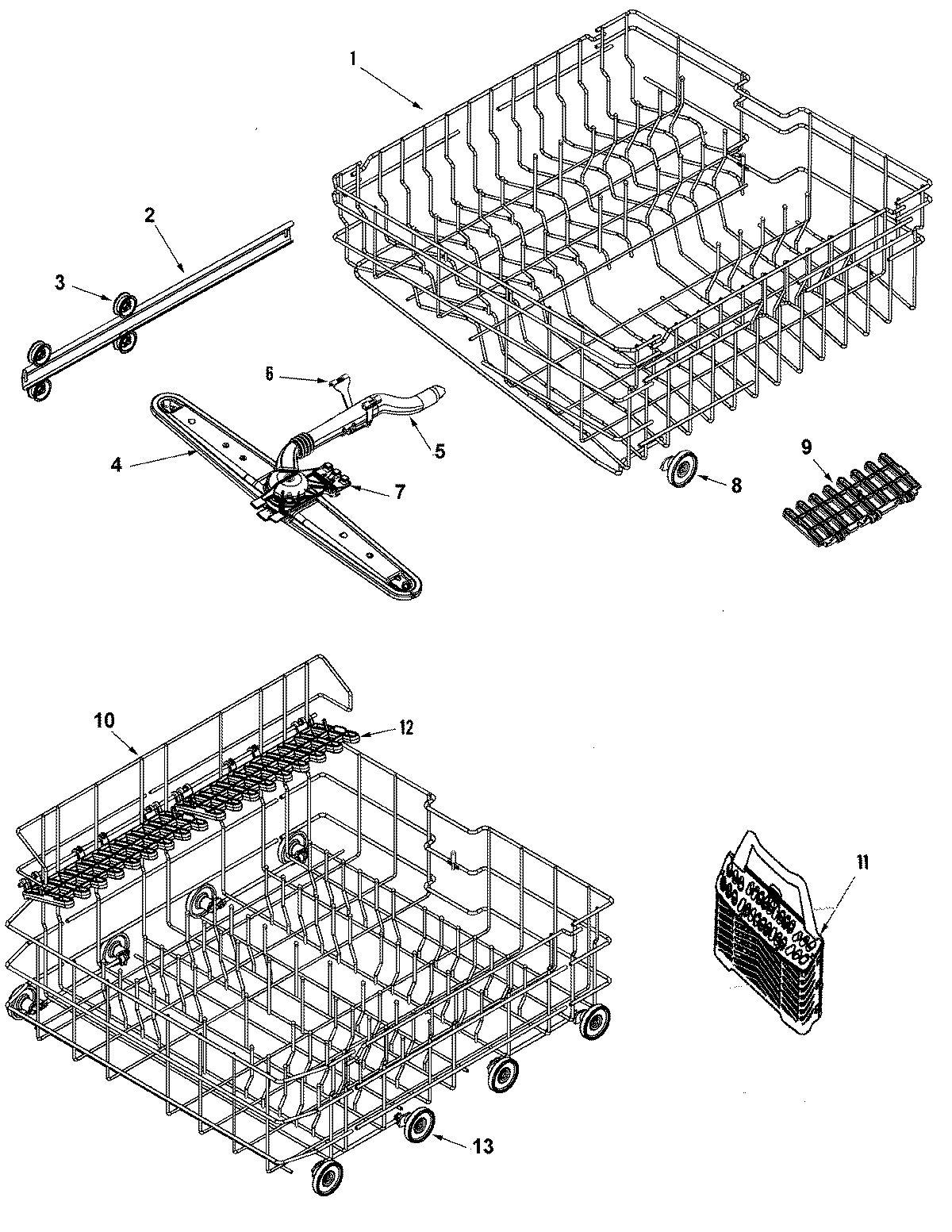

ADB2500AWQ 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003201
2WPW10261227 Whirlpool Dishwasher Stop Assembly
2TRACK, RACK
3WP99002947 Whirlpool Tub Wheel
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
4SCREW, TRUSS HEAD (10-18X.75)
5WASH MANIFOLD ASSY (UPR)
699002945 Whirlpool Dishwasher Upper Wash Manifold Clip
7CLIP, UPR WASH MANIFOLD (FRT)
8WP99002781 Whirlpool Dishwasher Wheel
9MAY 99002017
9MAY 99003006
10MAY 99003470
11MAY 99003429
12MAY 99003472
13WP99002780 Whirlpool Lower Wheel Assembly
