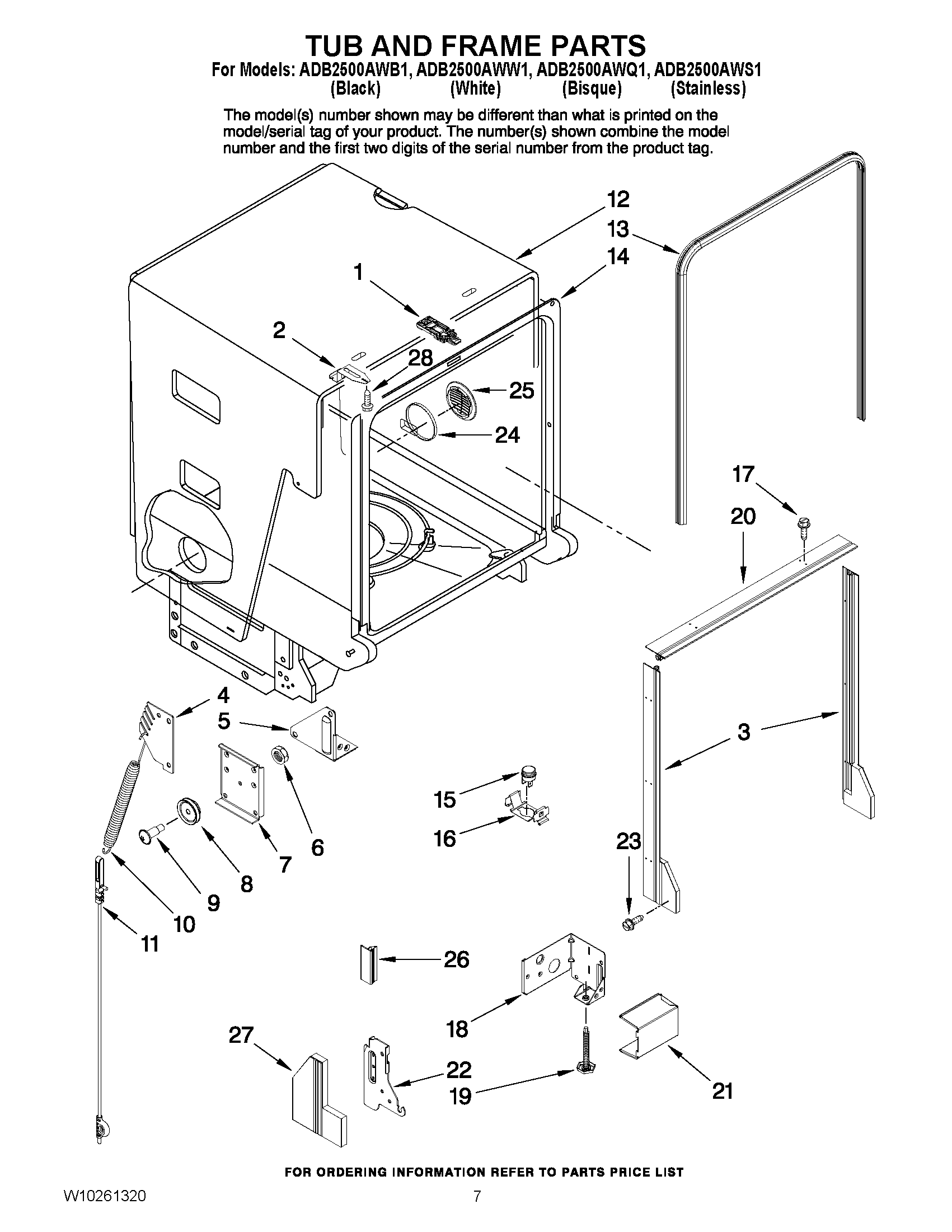

ADB2500AWQ1 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 6-916881
3	TRIM, STRIP
4	MAY 6-918346
5	BRACKET, SUPPORT LEFT
6	MAY 99003688
7	MAY W10173920
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99003687
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	MAY W10223013
13	MAY 99002588
14	MAY W10142297
15	MAY 99002633
16	MAY 99002634
17	MAY 6-917273
18	MAY 6-917103
19	MAY W10143258
20	STRIP, TRIM TOP
21	MAY 6-916711
22	MAY W10137496
22	MAY W10137495
23	SCREW 10-32X.400 (T-20 HEAD)
24	MAY 6-919082
25	Grill,Air/Water Inlet
26	Gap Seal, Toe Kick (Bisque)
26	Gap Seal, Toe Kick (Black)
26	Gap Seal, Toe Kick (White)
27	TRIM STRIP ASSEMBLY (LT)
27	TRIM STRIP ASSEMBLY (RT)
28	MAY 6-912799
