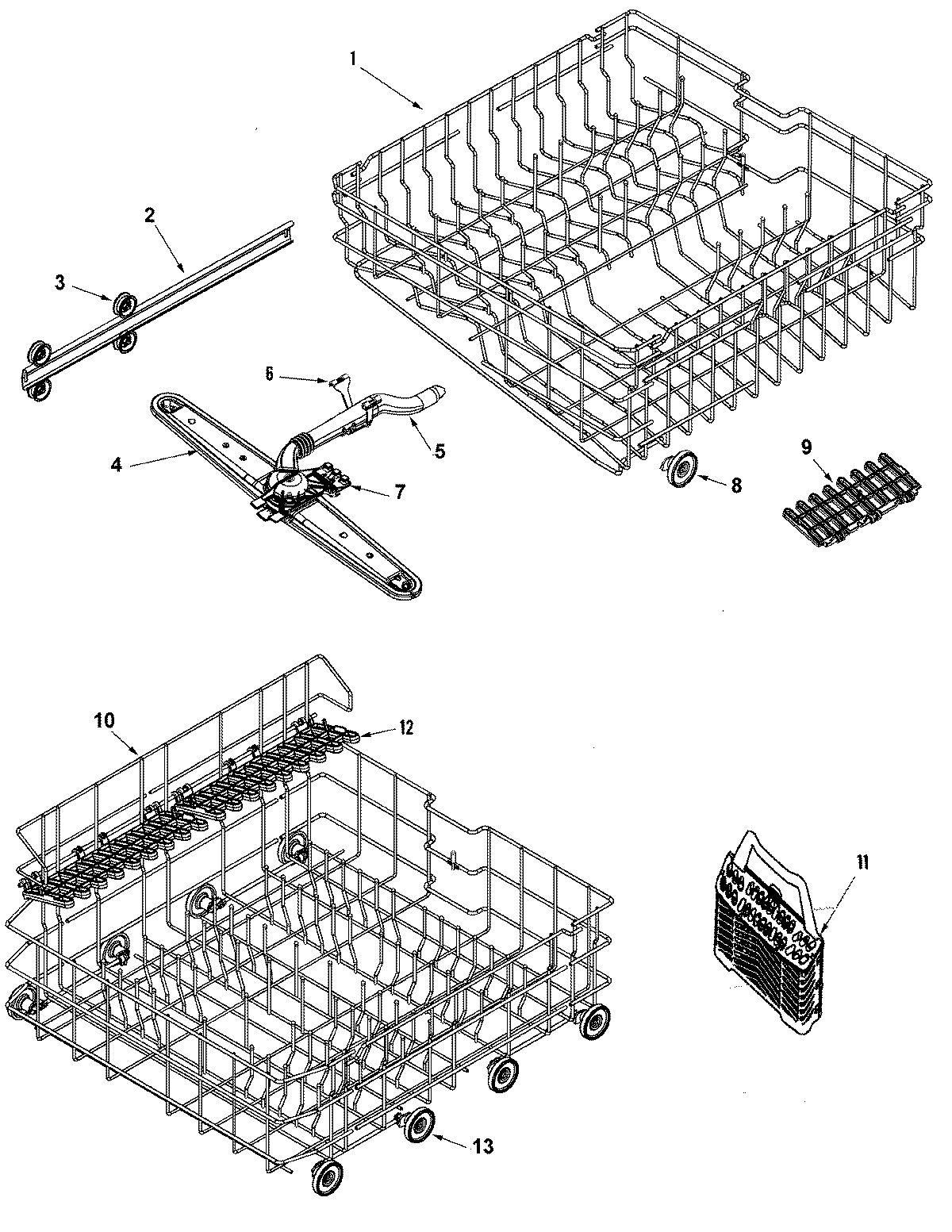

ADB2500AWW 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003201
2	WPW10261227 Whirlpool Dishwasher Stop Assembly
2	TRACK, RACK
3	WP99002947 Whirlpool Tub Wheel
3	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4	WP99003070 Whirlpool Dishwasher Wash Arm
4	SCREW, TRUSS HEAD (10-18X.75)
5	WASH MANIFOLD ASSY (UPR)
6	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
7	CLIP, UPR WASH MANIFOLD (FRT)
8	WP99002781 Whirlpool Dishwasher Wheel
9	MAY 99002017
9	MAY 99003006
10	MAY 99003470
11	MAY 99003429
12	MAY 99003472
13	WP99002780 Whirlpool Lower Wheel Assembly
