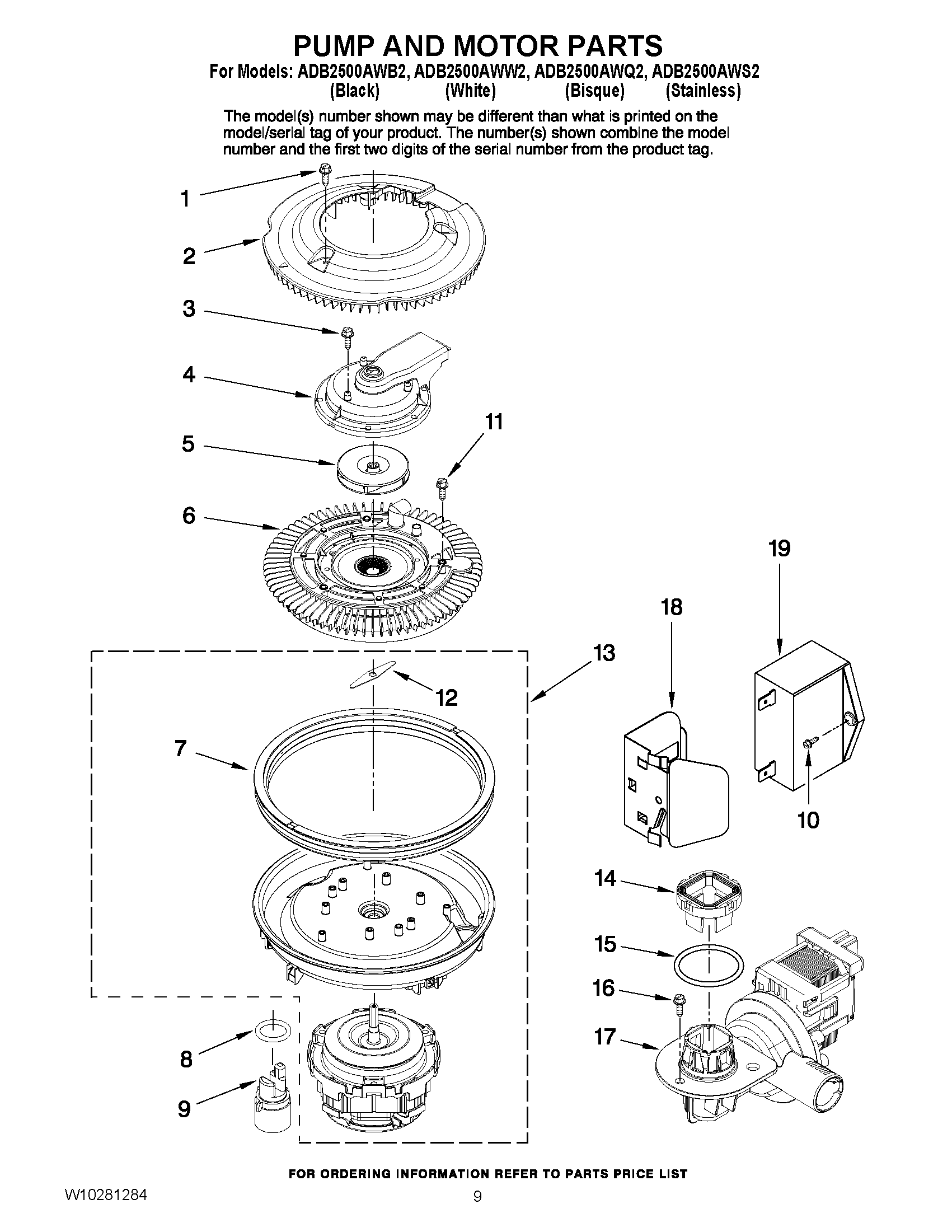

ADB2500AWW2 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 99002666
2	MAY W10166788
3	MAY W10202904
4	MAY W10212440
5	WP99002659 Whirlpool Impeller
6	MAY W10192799
7	MAY 6-917025
8	MAY 6-916444
9	MAY W10120019
10	SCREW 10-32X.400 (T-20 HEAD)
11	SCREW, DISCHARGE HOUSING
12	MAY 6-919353
13	MAY W10118627
14	MAY 6-919119
15	MAY 6-917029
16	SCREW, TRUSS HEAD (10-18X.75)
17	MAY W10119816
18	MAY W10167912
19	CAPACITOR, MOTOR
