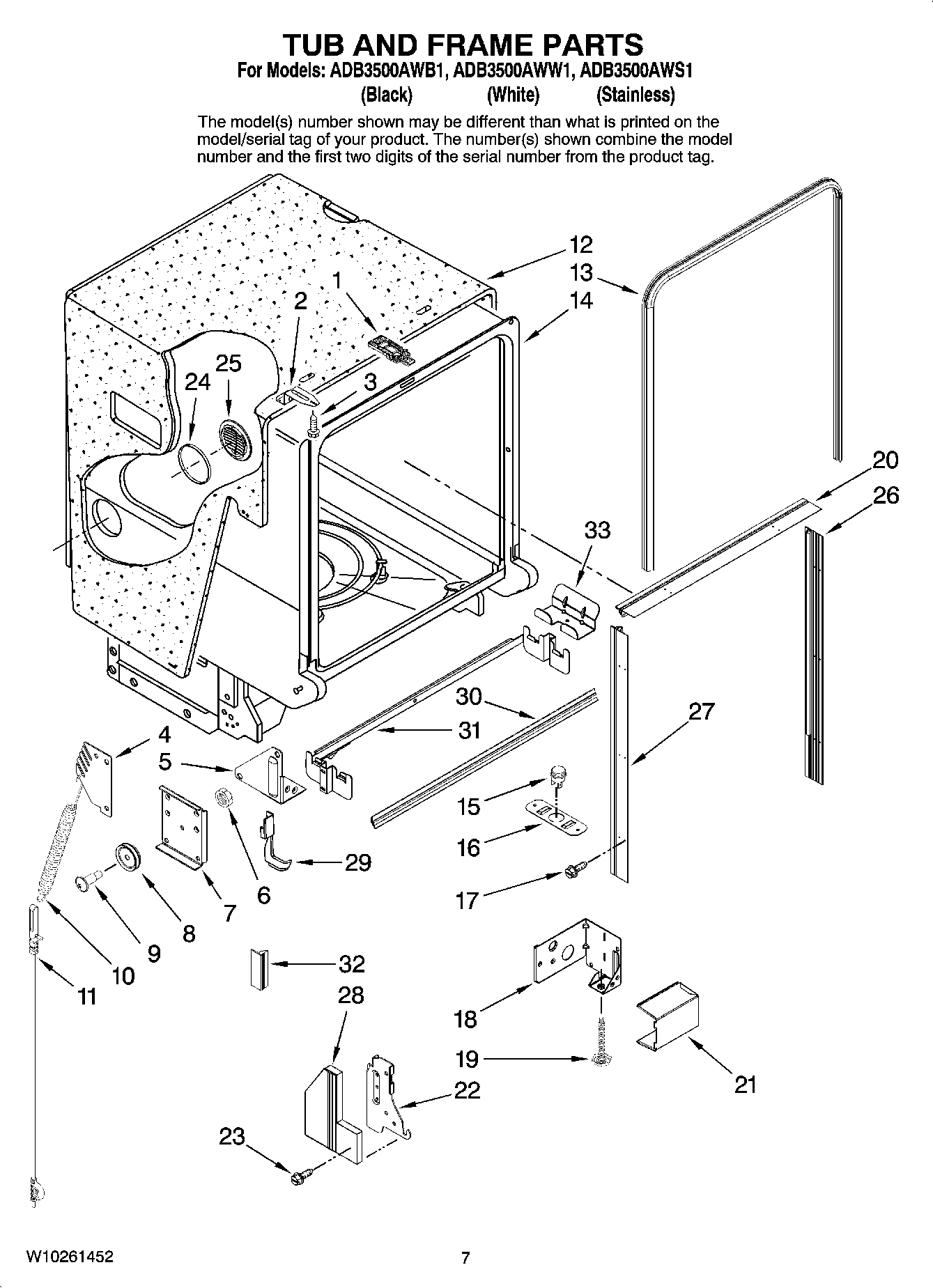

ADB3500AWB1 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 99002648
3	MAY 6-912799
4	6-918346 Whirlpool Dishwasher Bracket
5	BRACKET, SUPPORT (LT)
6	MAY 99003688
7	MAY W10173920
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99003687
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	WPW10223013 Whirlpool Dishwasher Insulation Pad
13	WP99003337 Whirlpool Door Seal
15	MAY 99002633
16	MAY W10167658
17	MAY 99002692
18	BRACKET, JUNCTION BOX SUPPORT
19	MAY W10143258
20	MAY W10164702
21	MAY 99002638
22	MAY W10117484
22	MAY W10117485
23	SCREW 10-32X.400 (T-20 HEAD)
24	WP99002150 Whirlpool Dishwasher Air Seal
25	W10259618 Whirlpool Dishwasher Deflector
26	STRIP, TRIM RIGHT
27	STRIP, TRIM LEFT
28	MAY W10174581
28	MAY W10174569
29	MAY 99003038
29	WP99003039 Whirlpool Dishwasher Trim
30	WP99003041 Whirlpool Dishwasher Trim
31	MAY W10167660
32	GAP SEAL, TOE KICK (WHT)
32	GAP SEAL, TOE KICK (BLK)
33	MAY W10167916
