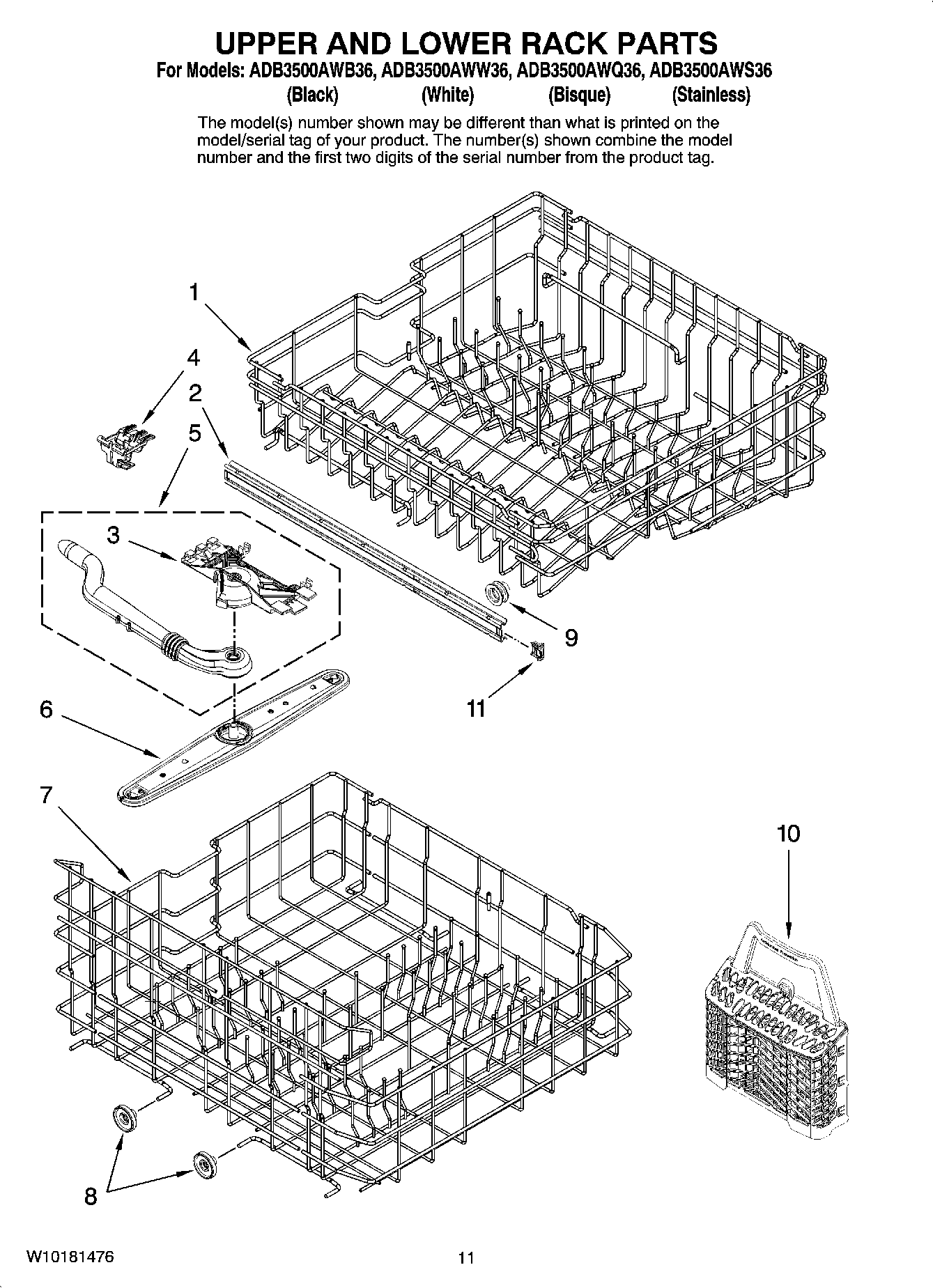

ADB3500AWB36 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10120534
2MAY 99003066
3CLIP, UPR WASH MANIFOLD (FRT)
499002945 Whirlpool Dishwasher Upper Wash Manifold Clip
5WASH MANIFOLD ASSY (UPR)
6WP99003070 Whirlpool Dishwasher Wash Arm
7MAY W10120547
8WP99002780 Whirlpool Lower Wheel Assembly
9WP99003147 Whirlpool Dishwasher Upper Rack Wheel
10MAY 99003429
11WP99003281 Whirlpool Gray Rail Stop
