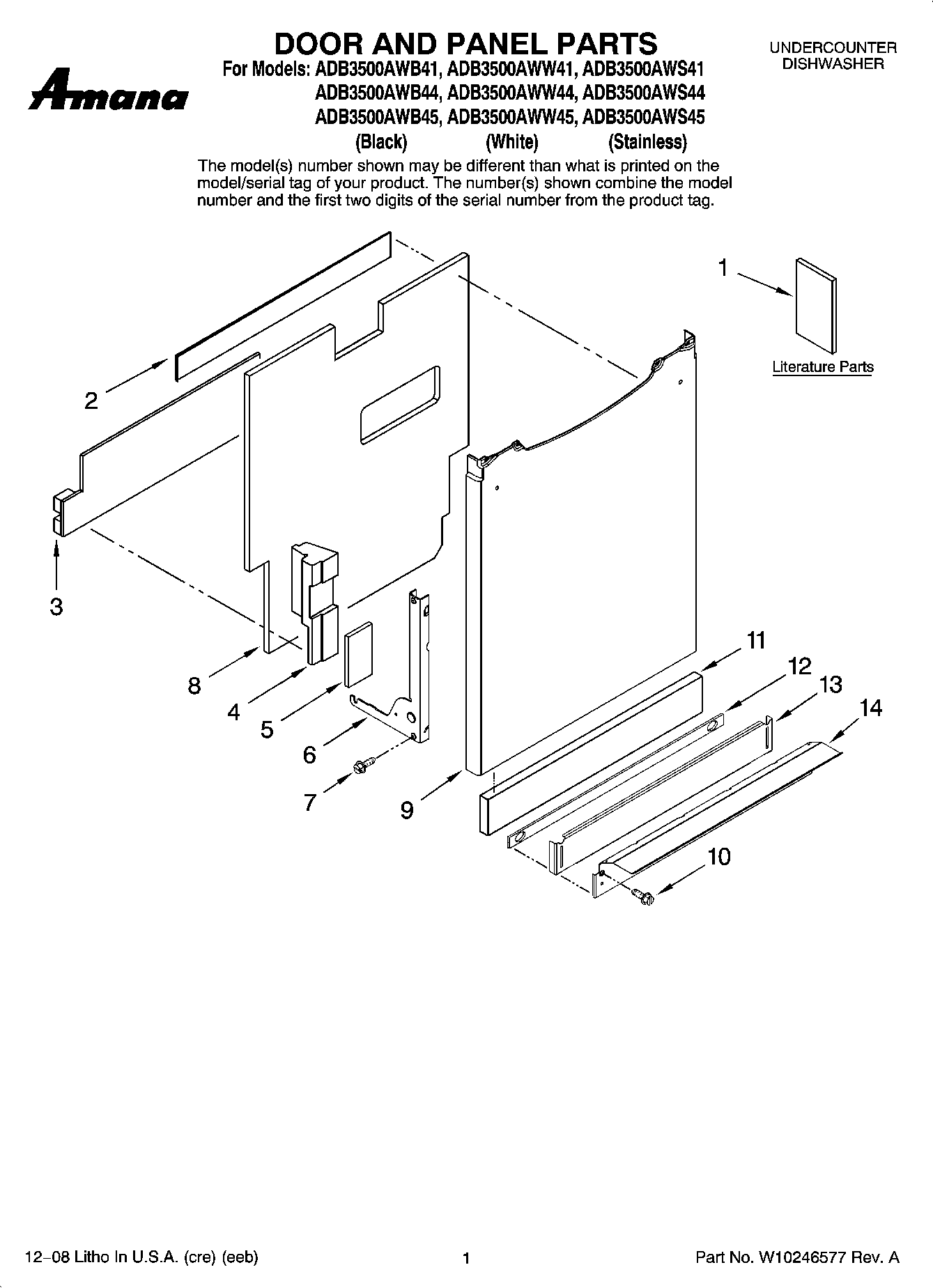

ADB3500AWB44 01 – DOOR AND PANEL PARTS

ADB3500AWB44 01 – DOOR AND PANEL PARTS

Written by

in

ADB3500AWB44 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1MAY W10158012
1Energy Guide
2DAMPER (2“ X 20“)
3MAY 99003048
4MAY 99003047
4MAY 99003046
5MAY 99003049
6MAY 99002929
6WPW10118637 Whirlpool Dishwasher Bracket
7MAY 99001075
8MAY 99003044
9MAY 99002770
9MAY 99002771
9PANEL, DECO (W/DAMPER-BLK)
10WP6-912366 Whirlpool Dishwasher Screw
10SCREW, ACCESS PANEL
11WP6-920587 Whirlpool Dishwasher Shield
12MAY 99002698
12Damper, Toe Panel (Black)
13MAY 99002766
13PANEL, TOE (W/DAMPER-BLK)
14SUPPORT, FRONT (W/SEALS)(WHT)
14SUPPORT, FRONT (W/SEALS)(BLK)
