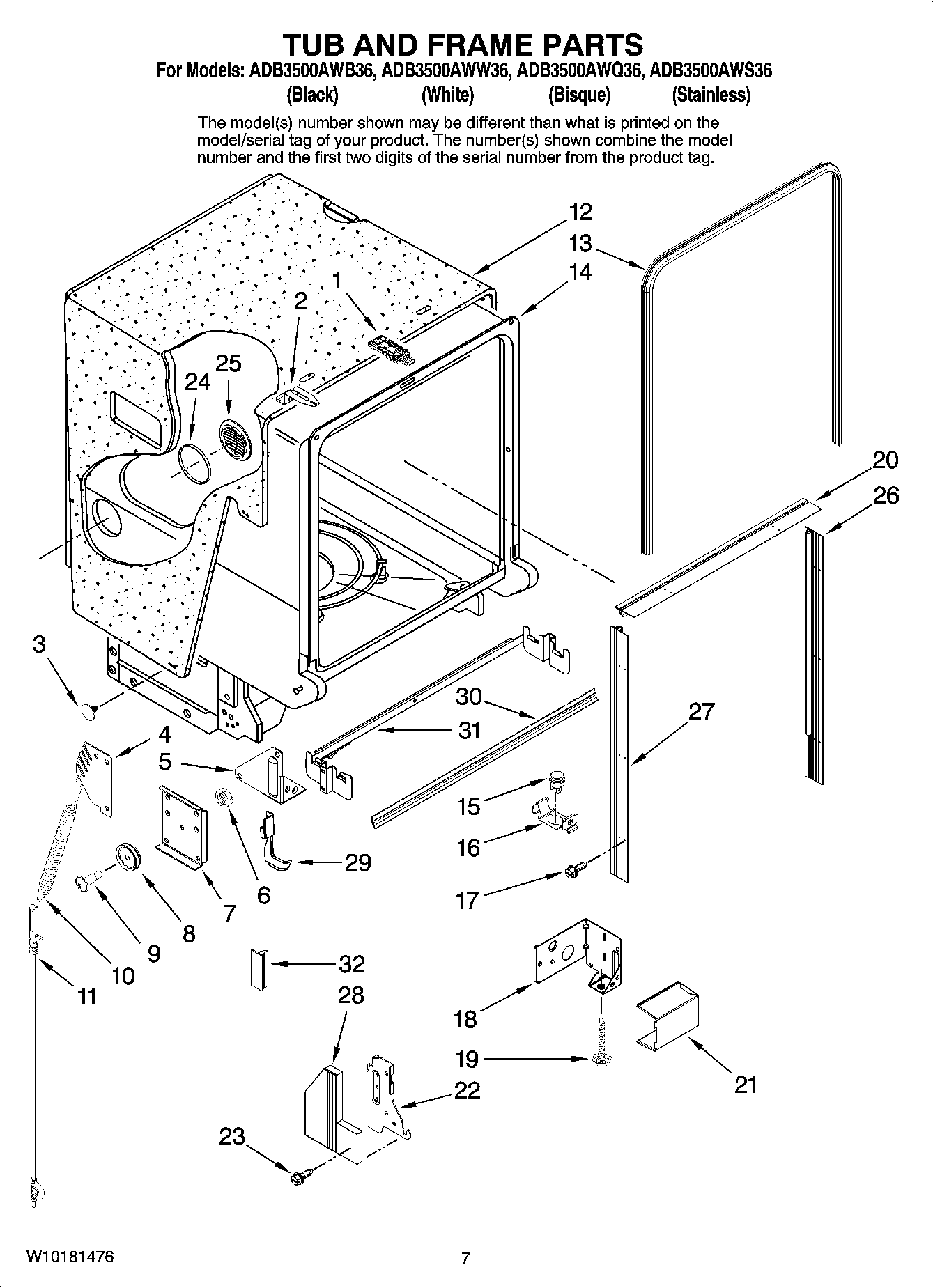

ADB3500AWQ36 07 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10119337
2	MAY 99002648
3	FASTENER, INSULATION
4	6-918346 Whirlpool Dishwasher Bracket
5	BRACKET, SUPPORT (LT)
6	MAY 99003688
7	MAY 99003686
8	WP99002608 Whirlpool Dishwasher Cable Roller
9	MAY 99003687
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	WPW10223013 Whirlpool Dishwasher Insulation Pad
13	WP99003337 Whirlpool Door Seal
14	Tub Assembly
15	MAY 99002633
16	MAY 99001008
17	MAY 99002692
18	BRACKET, JUNCTION BOX SUPPORT
19	WPW10143258 Whirlpool Dishwasher Leg Leveler
20	MAY 99003036
21	MAY 99002638
22	MAY W10117485
22	MAY W10117484
23	SCREW 10-32X.400 (T-20 HEAD)
24	WP99002150 Whirlpool Dishwasher Air Seal
25	W10259618 Whirlpool Dishwasher Deflector
26	MAY 99003035
27	MAY 99003034
28	BACKER, HINGE SEAL (RT)
28	BACKER, HINGE SEAL (LT)
29	MAY 99003038
29	WP99003039 Whirlpool Dishwasher Trim
30	WP99003041 Whirlpool Dishwasher Trim
31	MAY 99003087
32	GAP SEAL, TOE KICK (BLK)
32	GAP SEAL, TOE KICK (WHT)
32	MAY 99002702
